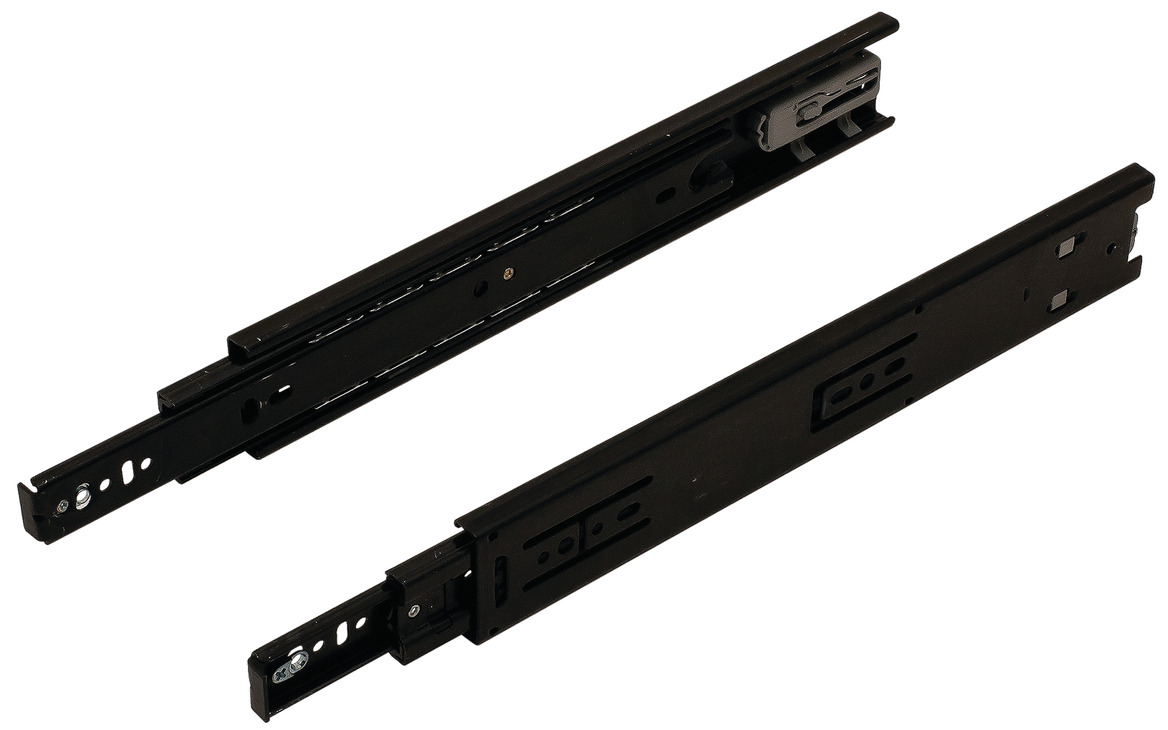

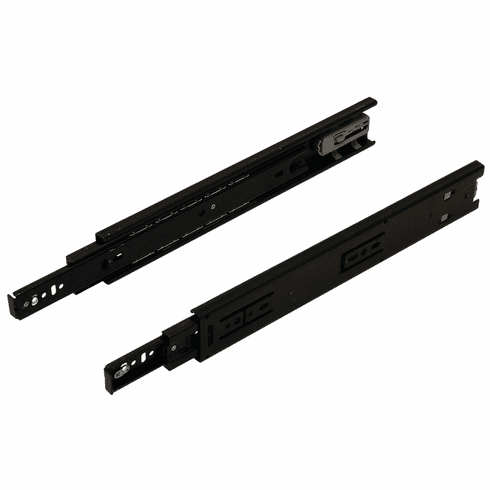

Hafele 422.97.335 Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Black, 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.97.335

  Product Title: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, Black, 14"

  Category: Accuride 3832HDSC Self-Close Heavy Duty, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details �

  - Heavy duty hold-in detent

  - Bounce back is eliminated

  - Keeps drawer front aligned

  - Self-closing with a pull force x 2 of standard 3832SC slide

  - Features low profile for shallw drawers

  - Lever disconnect

  - For optimal performance make drawers 1 1/16” (27 mm) less than cabinet opening

  - Load bearing capacity : 100 lbs

  - Mounting : Side mounted

  - Version : TelescopicHeavy dutyFeatures low profile for shallow drawersLever disconnect

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : For optimal performance make drawers 1 1/16” (27 mm) less than cabinet opening

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

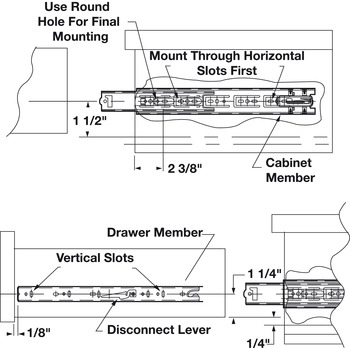

  Accuride 3832 HDSC Mounting Instructions



• Specifications

  Hafele 422.97.335, 422-97-335, 42297335, 422.97


  Specifications/Hafele Catalog - Page# FC8.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
  • Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
