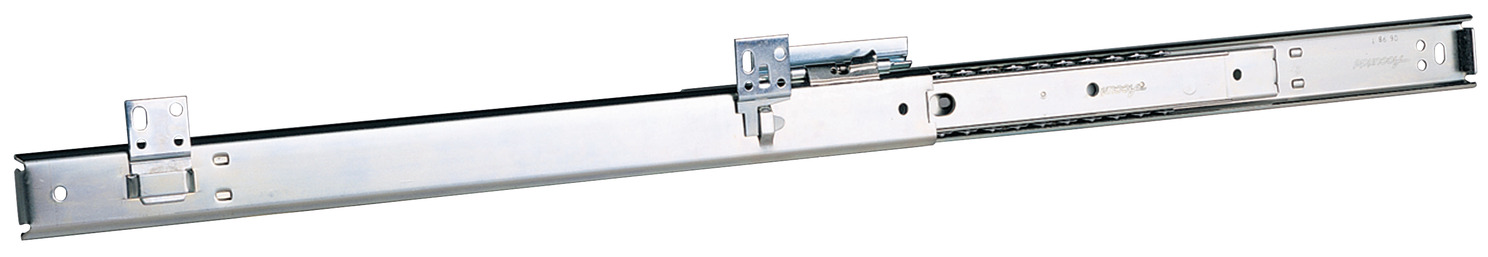

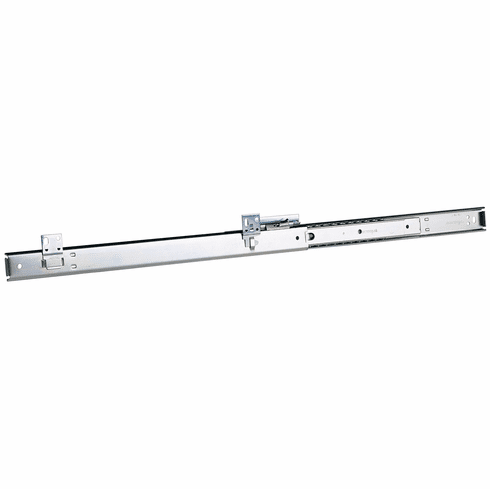

Hafele 422.94.945 Accuride 340 Lock-Out Side Mounted Slide, Full Extension, 110 lbs Weight Capacity 18"

Product Information

• Description

  Hafele 422.94.945 Accuride 340 Lock-Out Side Mounted Slide, Full Extension, 110 lbs Weight Capacity
  18"



  Model series : 340

  Mounting : Side mounted

  Load bearing capacity : Per pair: (110 lbs.) 50 kg

  Application : Ideal for butcher blocks, cutting boards and work surface shelves
  For drawers up to 406 mm (16") wide

  Type of pull out : Lock-out in the extended position

  Features : Easy disconnects for removal and/or cleaning

  Material : Steel

  Finish : Zinc

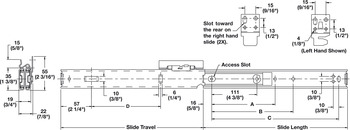

  A : (8 3/8") 213 mm

  B : (11 7/8") 302 mm

  C : (16 3/4") 425 mm

  D : (12 1/2") 318 mm



  Supplied with :

  Mounting screws





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.75-8.75.pdf

  Hafele 422.94.945, 422-94-945, 42294945, 422.94
