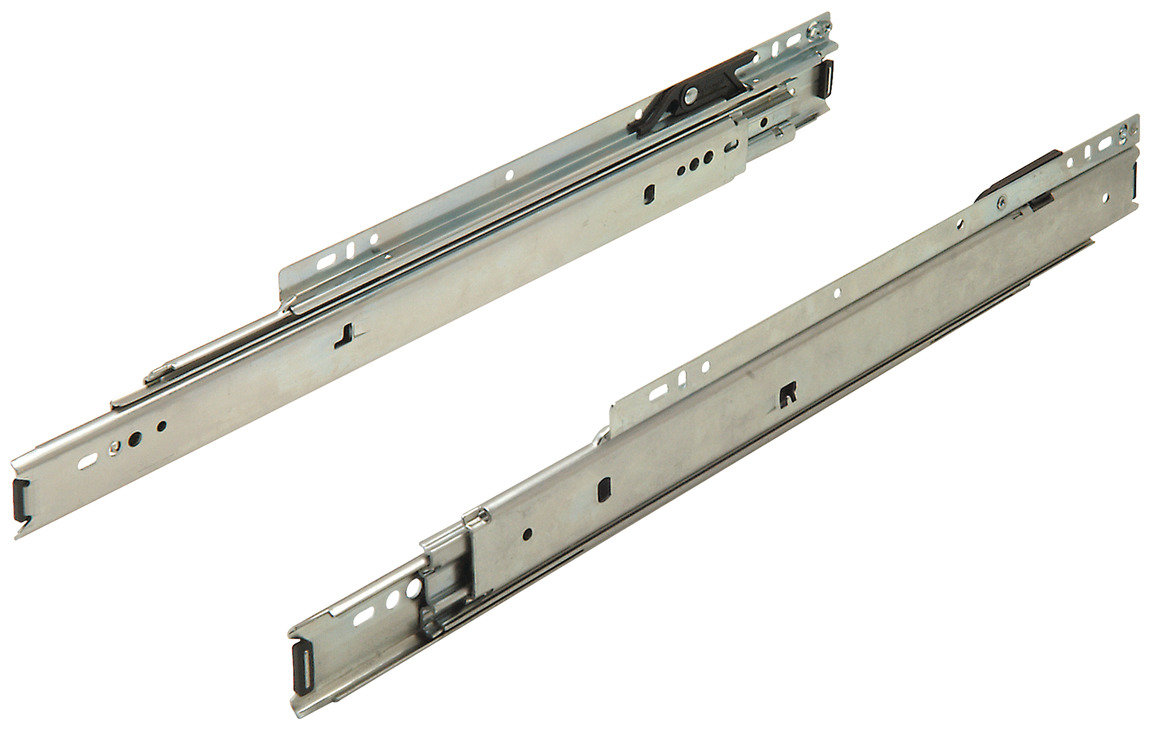

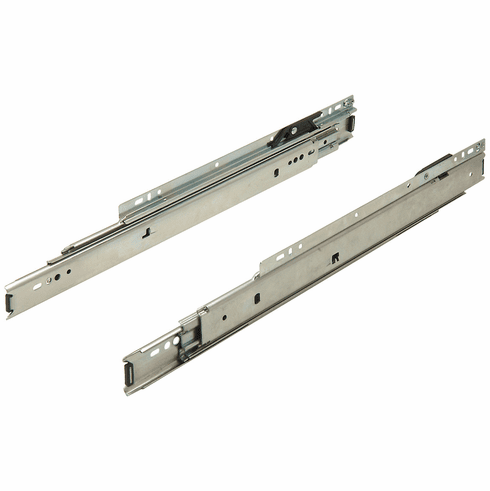

Hafele 422.93.955 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity Shop pack, zinc-plated, 22" installed length, 23" extension length, 20 5/8" rail length

Product Information

• Description

  Hafele 422.93.955 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity
  Shop pack, zinc-plated, 22" installed length, 23" extension length, 20 5/8" rail length



  Model series : 7434

  Mounting : Side mounted

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Progressive
  Low profile - 60 mm (2 3/8")

  Load capacity : Per apir: (100 lbs) 45 kg

  Application : Can be mounted in either traditional or 32 mm cabinets

  Material : Steel

  Note :

  X pack: 5 pairs





  Optional items:
  with Special Countersunk Head
  Hafele, Varianta, countersunk head, PZ2, steel, for screwing into wood
  with Special Cylinder Head, #2 Pozi Drive, Shop Pack


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.93.955, 422-93-955, 42293955, 422.93
