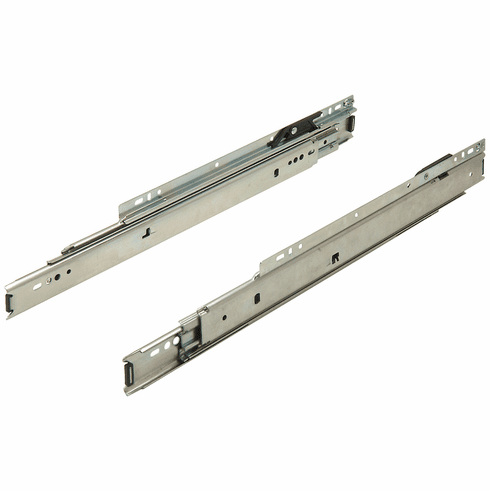

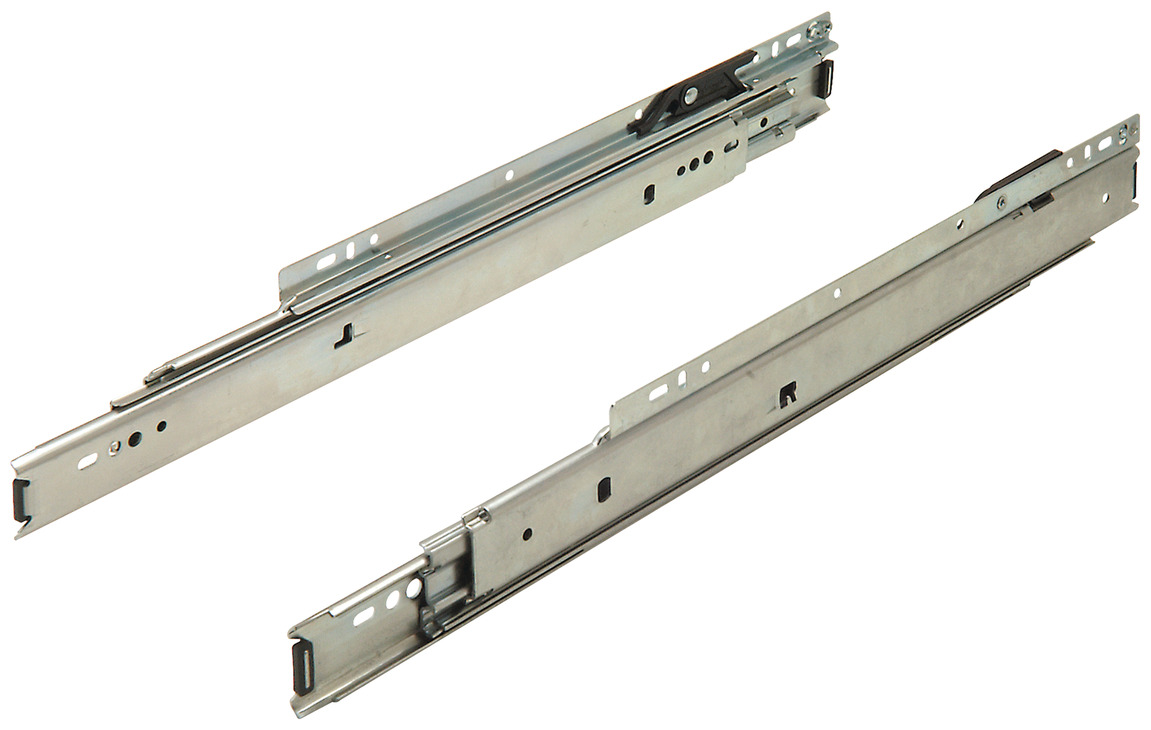

Hafele 422.93.945 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity Shop pack, zinc-plated, 18" installed length, 19" extension length, 13 1/16" rail length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.93.945

  Product Title: Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity, Shop pack, zinc-plated, 18" installed length, 19" extension length, 13 1/16" rail length

  Category: Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity,

  Item Details …

  - Full drawer access with smooth, consistent movement

  - Steel ball bearings for increased strength & stability

  - Rail mounted for easy drawer installation and removal

  - Prevents drawer bounce back and roll out

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

  - Version : ProgressiveLow profile - 60 mm (2 3/8")

  - Type of pull out : Full extension

  - Area of application : Can be mounted in either traditional or 32 mm cabinets

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Mounting screws


  Additional Information …

  X pack: 5 pairs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 7432-7434 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.101



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.93.945, 422-93-945, 42293945, 422.93


  Specifications/Hafele Catalog - Page# FC8.48: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Varianta Euro Screw, with Special Countersunk Head
