Hafele 422.93.938 Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.93.938

  Product Title: Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity,

  Category: Accuride 7434 Progressive Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity,

  Item Details …

  - Full drawer access with smooth, consistent movement

  - Steel ball bearings for increased strength & stability

  - Rail mounted for easy drawer installation and removal

  - Prevents drawer bounce back and roll out

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

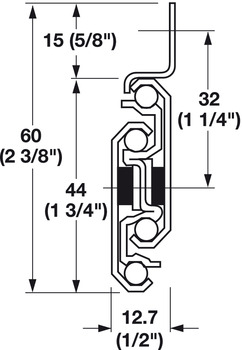

  - Version : ProgressiveLow profile - 60 mm (2 3/8")

  - Type of pull out : Full extension

  - Area of application : Can be mounted in either traditional or 32 mm cabinets

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

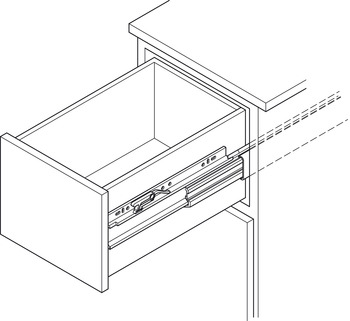

  - Installation : Side mounted

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Mounting screws


  Additional Information …

  X pack: 5 pairs
