Hafele 422.91.956 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity Zinc, 22"

Product Information

• Description

  Hafele 422.91.956 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity
  Zinc, 22"

  Accuride 3832 DO With hold-in device in closed position and hold-out device in extended position

  Model series : 3832 DO

  Mounting : Side mounted

  Type of pull out : Full extension

  Load bearing capacity : (100 lbs.) 45 kg

  Application : For drawers up to 406mm (16") wide

  Material : Steel

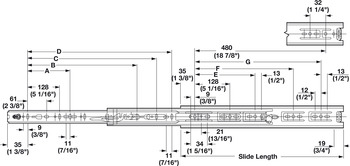

  C : 352 mm

  D : 448 mm

  F : 352





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.91.956, 422-91-956, 42291956, 422.91


  Specifications/Hafele Catalog - Page# FC8.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
