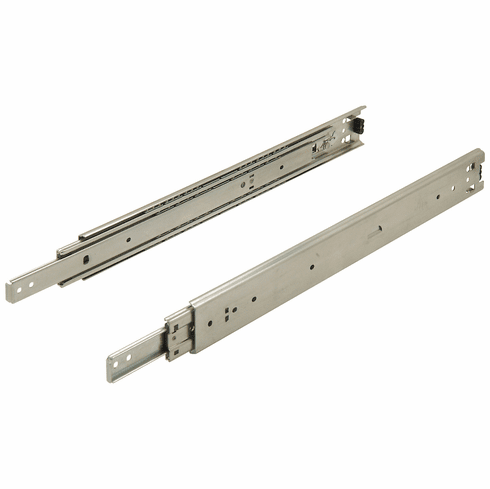

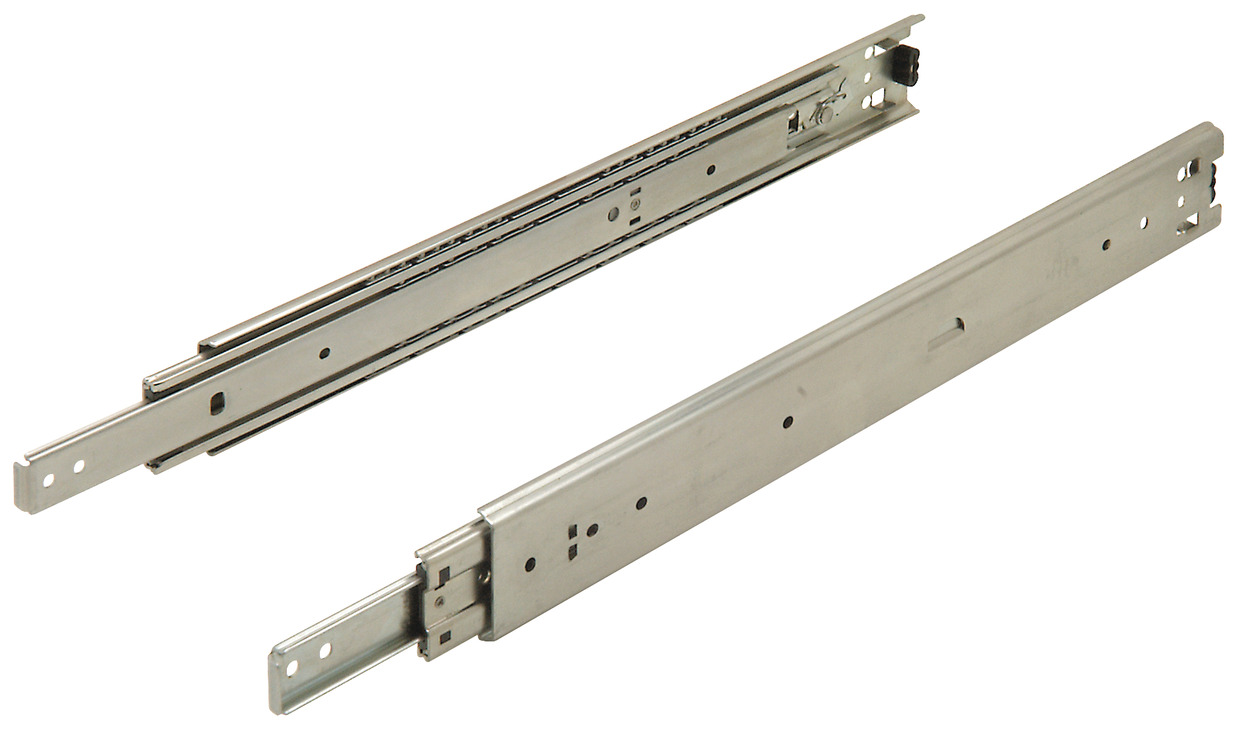

Hafele 422.89.945 Accuride 3348 Telescopic Side Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity Zinc, 18"

Product Information

• Description

  Hafele 422.89.945 Accuride 3348 Telescopic Side Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity
  Zinc, 18"



  Model series : 3348

  Mounting : Side mounted

  Load bearing capacity : Per pair: (150 lbs) 68 kg

  Features : Front latch disconnect

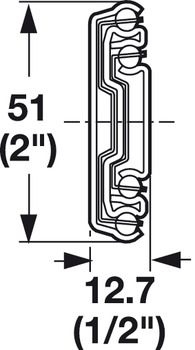

  1/2" side space
  Lockable detent out
  Detent-out with 1" overtravel

  Material : Steel

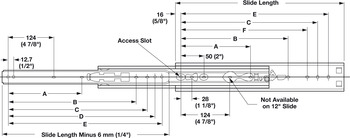

  A : (7") 178 mm

  B : (12 1/3") 314 mm

  C : (15 1/4") 387 mm

  D : (15 3/4") 400 mm

  E : (16 1/4") 413 mm

  Dim. F : (14 1/4") 362 mm



  Optional items:
  Pan Head Screws


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.60-8.60.pdf

  Hafele 422.89.945, 422-89-945, 42289945, 422.89


  Specifications/Hafele Catalog - Page# FC8.46: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
