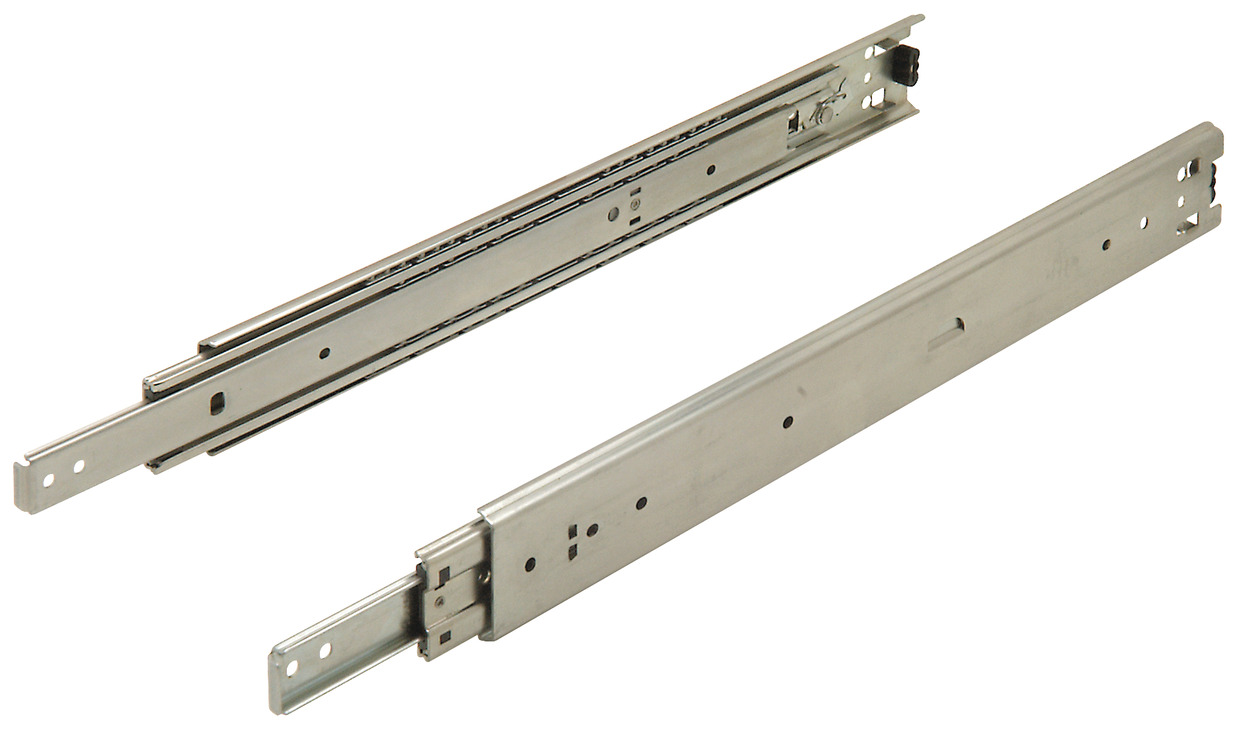

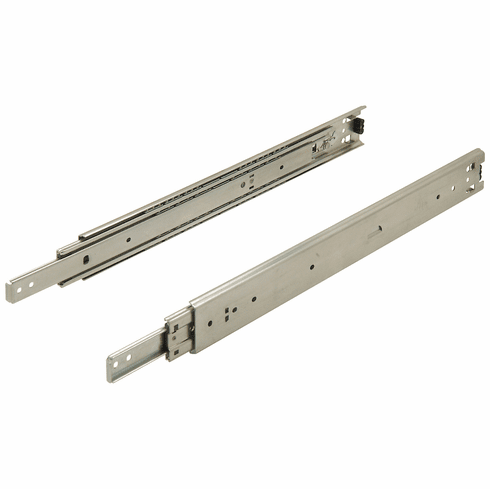

Hafele 422.89.355 Accuride 3348 Telescopic Side Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity Black, 22"

Product Information

• Description

  Hafele 422.89.355 Accuride 3348 Telescopic Side Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity
  Black, 22"



  Model series : 3348

  Mounting : Side mounted

  Load bearing capacity : Per pair: (150 lbs) 68 kg

  Features : Front latch disconnect

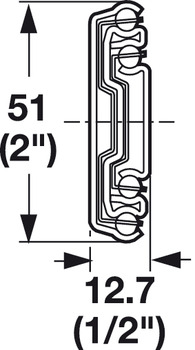

  1/2" side space
  Lockable detent out
  Detent-out with 1" overtravel

  Material : Steel

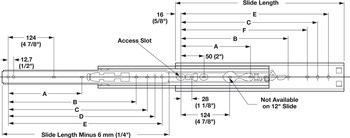

  A : (9") 229 mm

  B : (16 3/8") 416 mm

  C : (19 1/4") 489 mm

  D : (19 3/4") 502 mm

  E : (20 1/4") 514 mm

  Dim. F : (18 1/4") 464 mm



  Optional items:
  Pan Head Screws


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.60-8.60.pdf

  Hafele 422.89.355, 422-89-355, 42289355, 422.89
