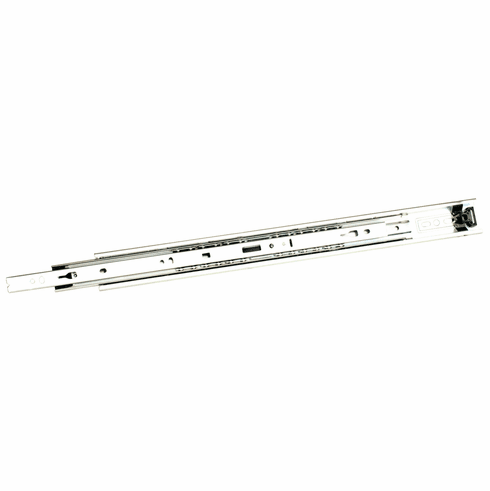

Hafele 422.88.936 Accuride 3732 Side Mounted Slide, Full Extension, 100 lbs Weight Capacity Zinc, 13 3/4" installed length, 14" travel length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.88.936

  Product Title: Accuride 3732 Side Mounted Slide, Full Extension, 100 lbs Weight Capacity, Zinc, 13 3/4" installed length, 14" travel length

  Category: Accuride 3732 Side Mounted Slide,

  Item Details …

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

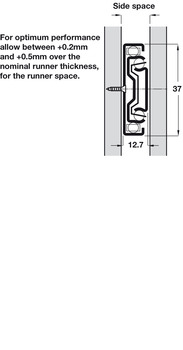

  - Version : Slim side space mounting 1/2"Lever disconnectLow profile height 1 1/2" (38 mm)

  - Type of pull out : Full extension

  - Area of application : Drawers up to 16" wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.86



• Specifications

  Hafele 422.88.936, 422-88-936, 42288936, 422.88


  Specifications/Hafele Catalog - Page# FC8.35: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Optional Face Frame Bracket, for Accuride 3732 Side Mounted Slide
