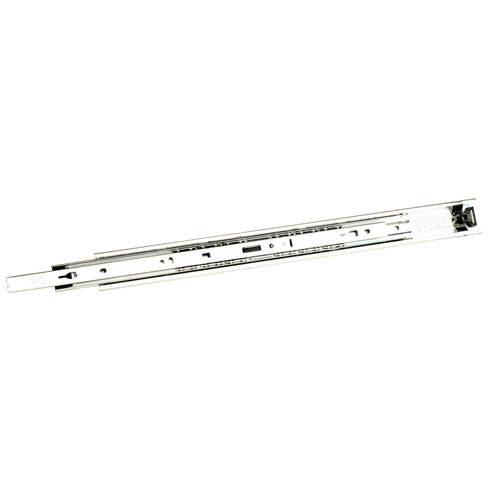

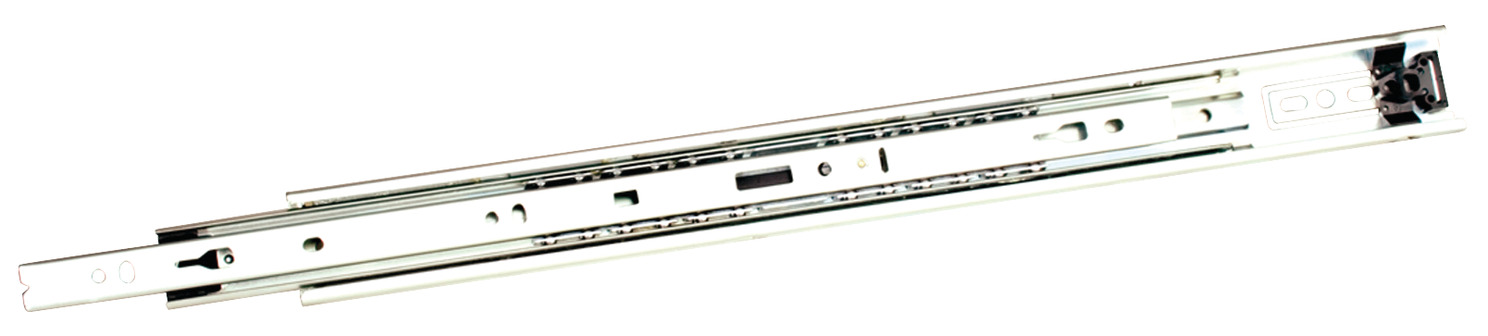

Hafele 422.88.746 Accuride 3732 Side Mounted Slide, Full Extension, 100 lbs Weight Capacity White, 17 3/4" installed length, 18" travel length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.88.746

  Product Title: Accuride 3732 Side Mounted Slide, Full Extension, 100 lbs Weight Capacity, White, 17 3/4" installed length, 18" travel length

  Category: Accuride 3732 Side Mounted Slide,

  Item Details …

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

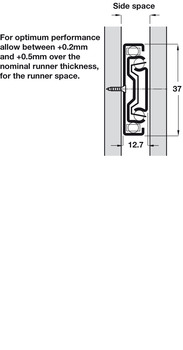

  - Version : Slim side space mounting 1/2"Lever disconnectLow profile height 1 1/2" (38 mm)

  - Type of pull out : Full extension

  - Area of application : Drawers up to 16" wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

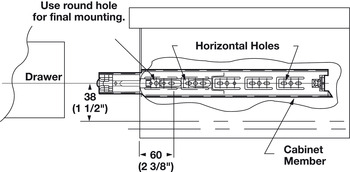

  Accuride 3732 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.86



• Specifications

  Hafele 422.88.746, 422-88-746, 42288746, 422.88
