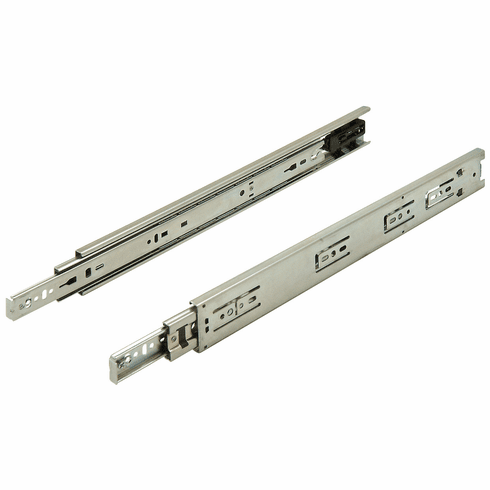

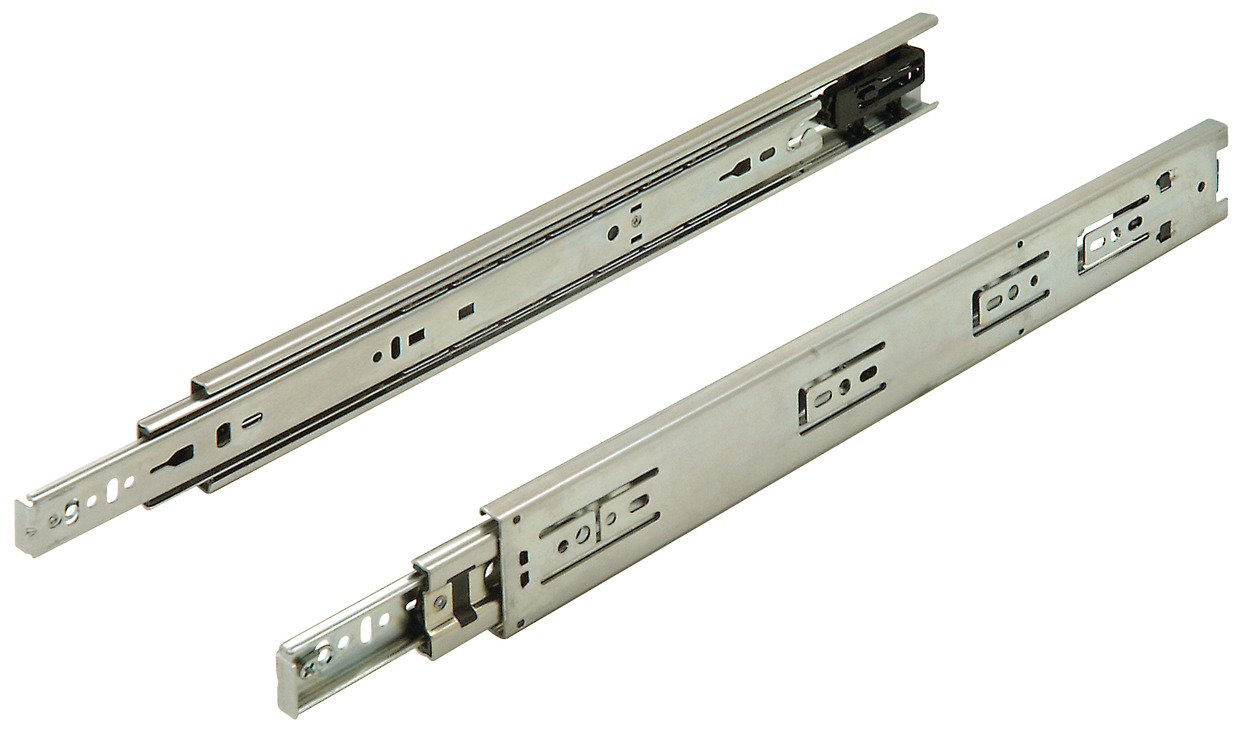

Hafele 422.86.961 Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close Zinc, 24"

Product Information

• Description

  Hafele 422.86.961 Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close
  Zinc, 24"



  Model series : 3834SC

  Mounting : Side mounted

  Load bearing capacity : (90 lbs.) 41 kg

  Application : For drawers up to 406 mm (16") wide

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Telescopic
  Features low profile for shallow drawers
  Lever disconnect
  Self-closing

  Material : Steel



  Optional items:
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides

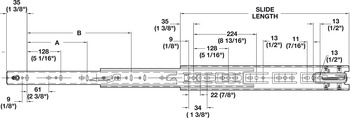

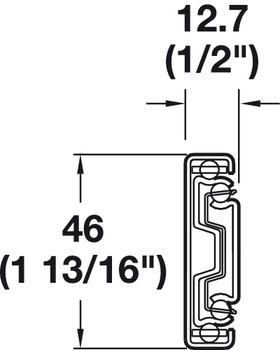

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.54-8.54.pdf

  Hafele 422.86.961, 422-86-961, 42286961, 422.86


  Specifications/Hafele Catalog - Page# FC8.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
