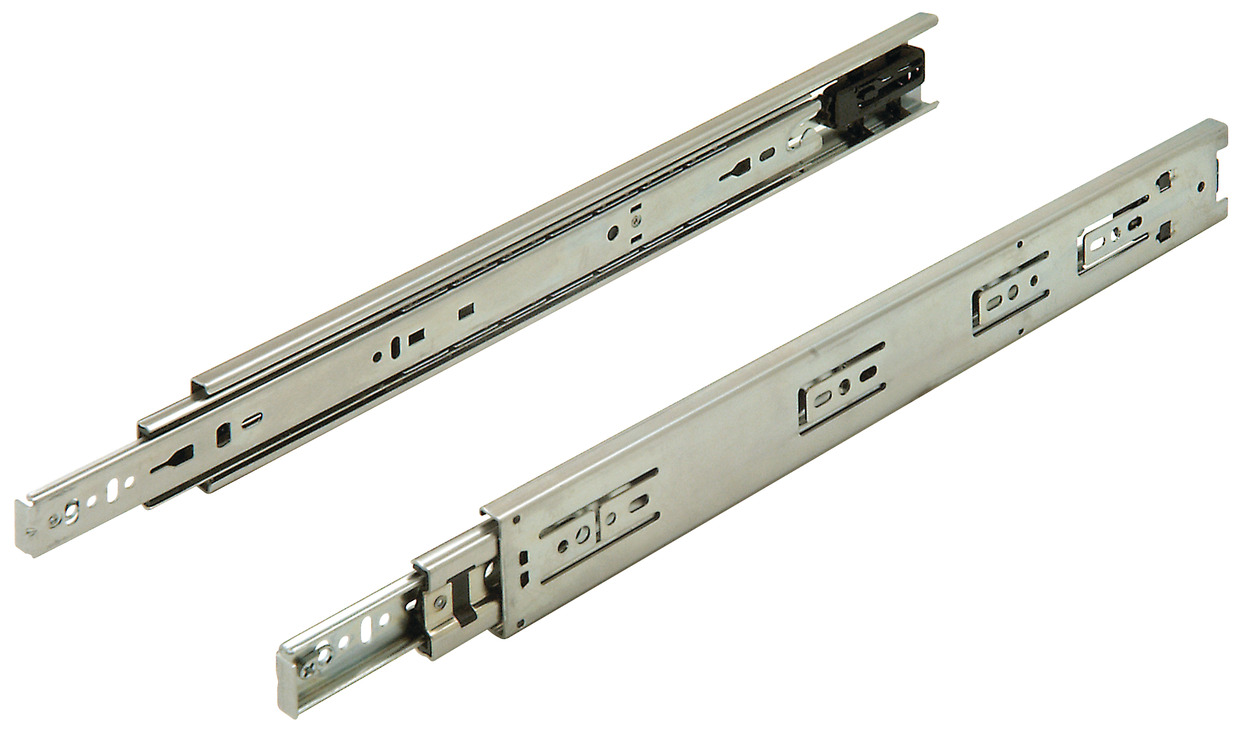

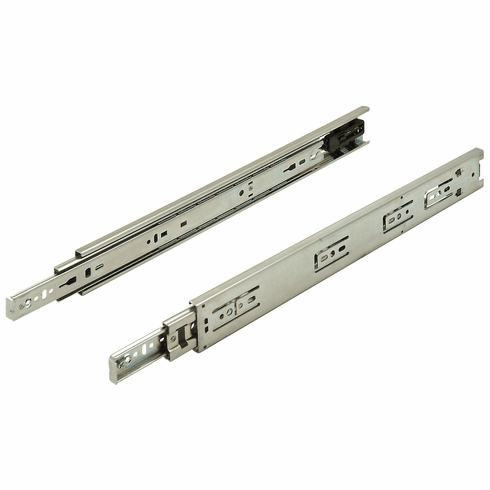

Hafele 422.86.941 Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close Zinc, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.86.941

  Product Title: Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close, Zinc, 16"

  Category: Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close,

  Item Details …

  - Load bearing capacity : 41.00 kg

  - Load bearing capacity : 90 lbs

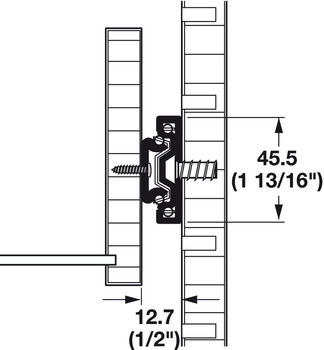

  - Mounting : Side mounted

  - Version : TelescopicFeatures low profile for shallow drawersLever disconnectSelf-closing

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3832-3834SC Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.90



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.54-8.54.pdf

  Hafele 422.86.941, 422-86-941, 42286941, 422.86


  Specifications/Hafele Catalog - Page# FC8.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
