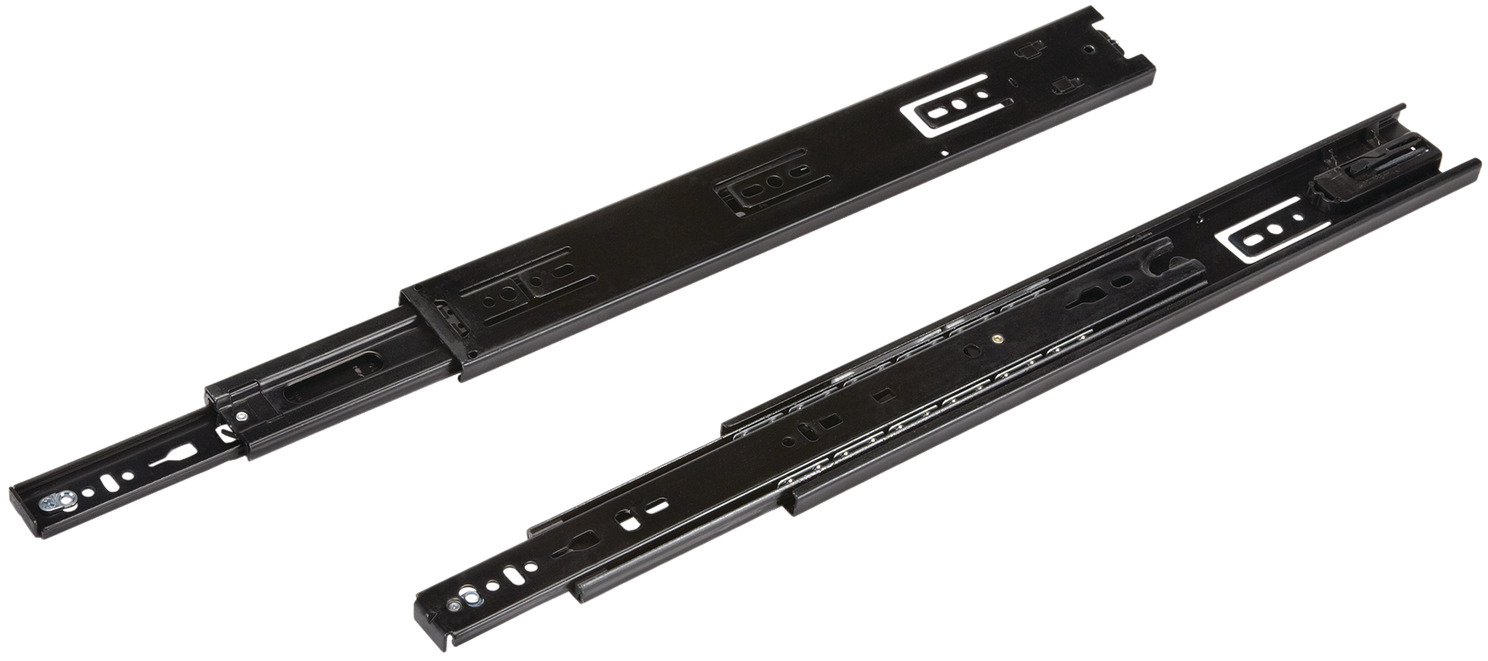

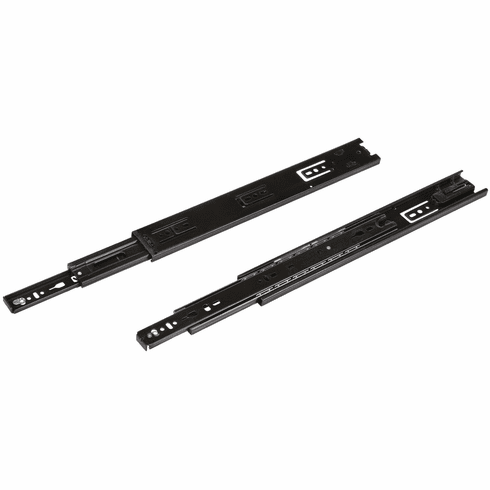

Hafele 422.86.356 Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close Black, 22"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.86.356

  Product Title: Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close, Black, 22"

  Category: Accuride 3834SC Side Mounted Slide, Telescopic, Full Extension, 90 lbs, Self-Close,

  Item Details …

  - Load bearing capacity : 41.00 kg

  - Load bearing capacity : 90 lbs

  - Mounting : Side mounted

  - Version : TelescopicFeatures low profile for shallow drawersLever disconnectSelf-closing

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3832-3834SC Quick Reference Instructions



• Specifications

  Hafele 422.86.356, 422-86-356, 42286356, 422.86


  Specifications/Hafele Catalog - Page# FC8.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
