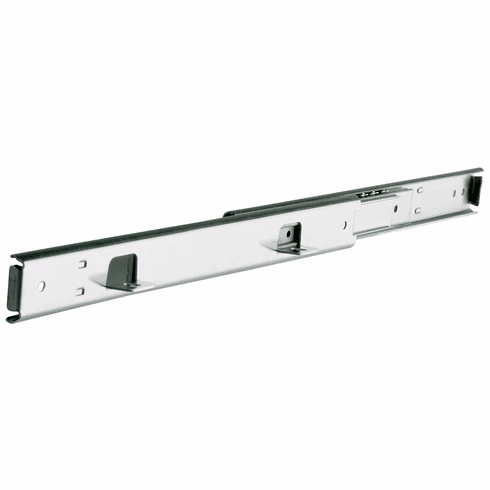

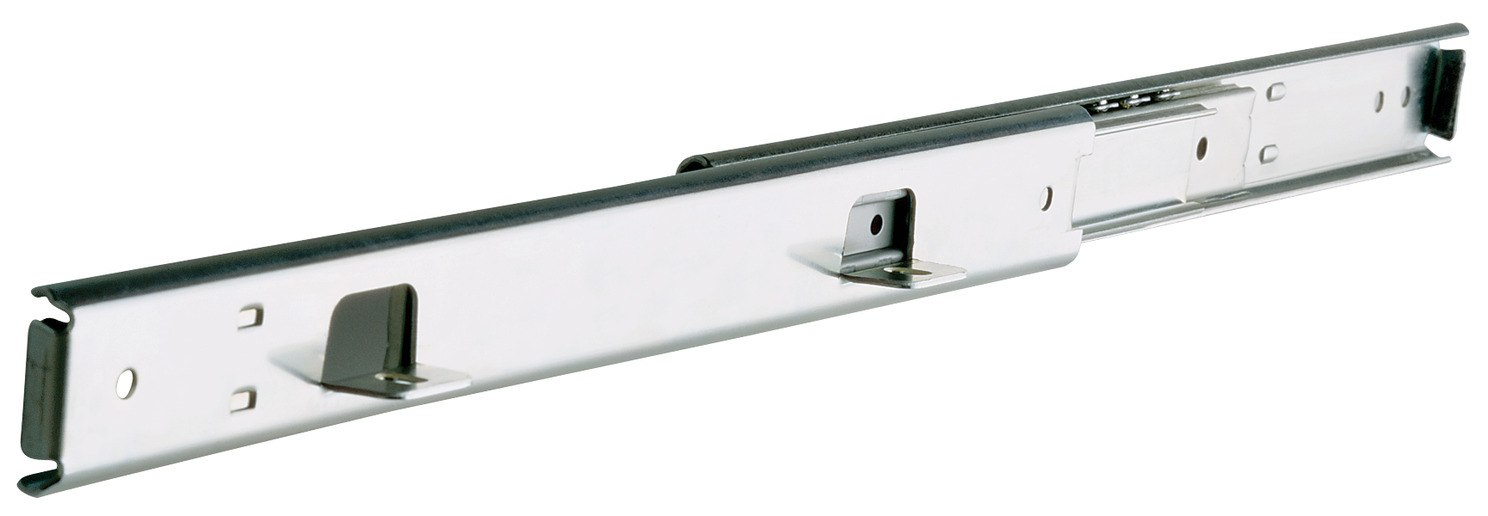

Hafele 422.69.930 Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity 12"

Product Information

• Description

  Hafele 422.69.930 Accuride 322 Pull-Out Side Mounted Shelf Slide, 7/8" Extension, 100 lbs Weight Capacity
  12"



  Model series : 322

  Mounting : Side mounted

  Load bearing capacity : Per pair: (100 lbs.) 45 kg

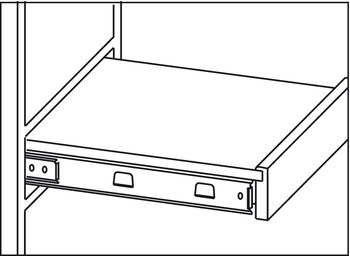

  Application : For use in kitchen appliance drawers, pan shelves, and entertainment center shelves
  For drawers up to 406 mm (16") wide

  Type of pull out : Shelf slide with 7/8" overtravel

  Features : Medium duty slide
  Non-disconnect

  Material : Steel

  Finish : Zinc

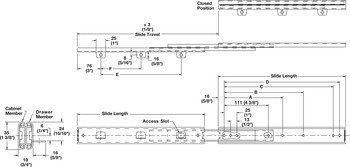

  B : 149 mm

  C : 260 mm

  D : 273 mm



  Supplied with :

  Mounting screws





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.74-8.74.pdf

  Hafele 422.69.930, 422-69-930, 42269930, 422.69


  Specifications/Hafele Catalog - Page# FC8.58: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
