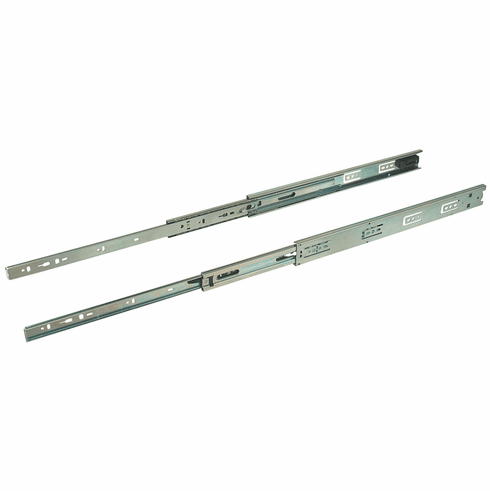

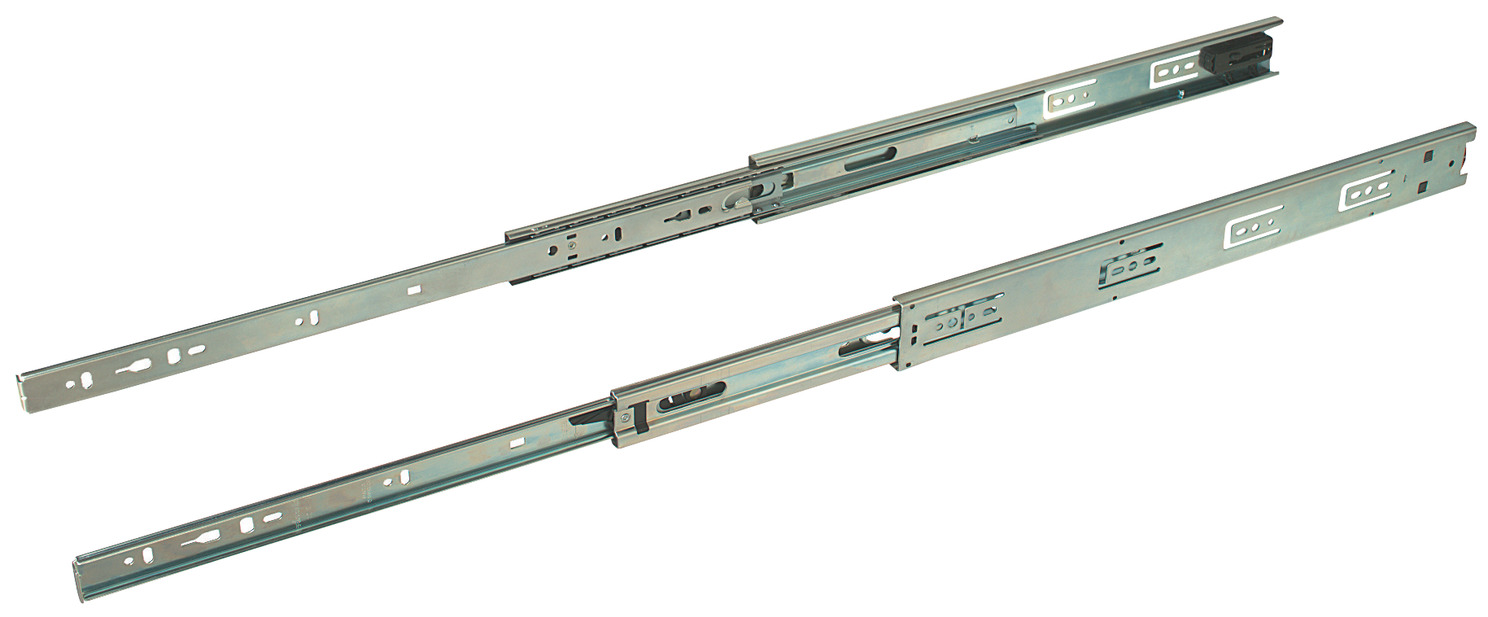

Hafele 422.59.935 Accuride 3832SC Self-Close, Bulk Pack, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Shop pack, zinc, 14" length

Product Information

• Description

  Hafele 422.59.935 Accuride 3832SC Self-Close, Bulk Pack, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity
  Shop pack, zinc, 14" length



  Model series : 3832 SC

  Mounting : Side mounted

  Type of pull out : Full Extension

  Load bearing capacity : (100 lbs) 45 kg

  Application : For drawers up to 406 mm (16") wide

  Installation : For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening

  Adjustment : Max. height adjustment ±1.6 mm, for adjusting drawer front panel

  Size : Max. drawer width = internal cabinet width - 25.4

  Material : Steel



  Optional items:
  Varianta special screws with countersunk head 5.0 mm for cabinet rail
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.52-8.53.pdf

  Hafele 422.59.935, 422-59-935, 42259935, 422.59


  Specifications/Hafele Catalog - Page# FC8.39: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
