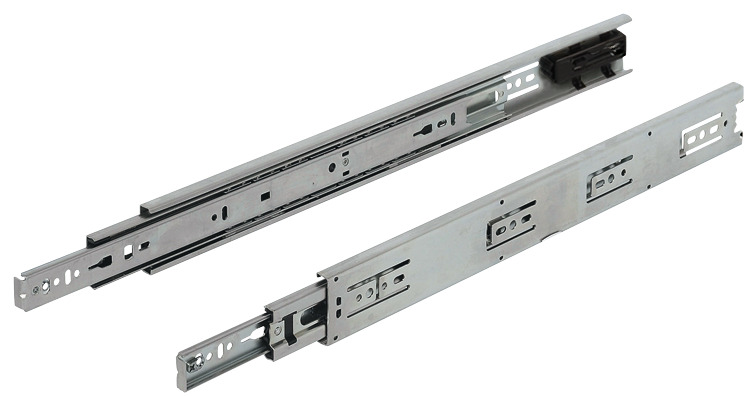

Hafele 422.59.346 Accuride 3832SC Self-Close, Bulk Pack, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Bulk pack, black, 18" length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.59.346

  Product Title: Accuride 3832SC Self-Close, Bulk Pack, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, With self closing mechanism, Bulk pack, black, 18" length

  Category: Accuride 3832SC Self-Close, Bulk Pack, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, With self closing mechanism

  Item Details …

  - Self-closing feature closes drawers and keeps them closed

  - Keeps drawer front aligned

  - Affordable option adds value to cabinetry

  - Lever disconnect

  - BHMA certified to Grade 1 HD-100

  - Load bearing capacity : 100 lbs

  - Mounting : Side mounted

  - Version : Can be disengaged using release leverFeatures low profile for shallow drawers

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Width : 320.00 mm

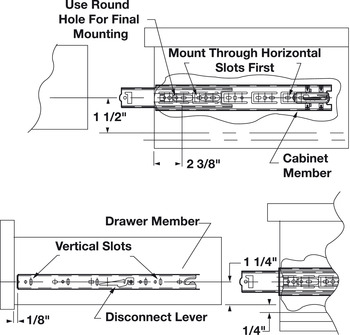

  - Installation : For optimal performance make drawers 1 1/16" (27 mm) lessthan cabinet opening

  - Order reference

  - Version with extra strong self closing mechanism (3832HDSC) available on request.

  - Supplied with:

  - Shop Pack: 1 pair of slides, screws and instructions

  - Bulk Pack: 10 pairs of slides


  Additional Information …

  Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.
