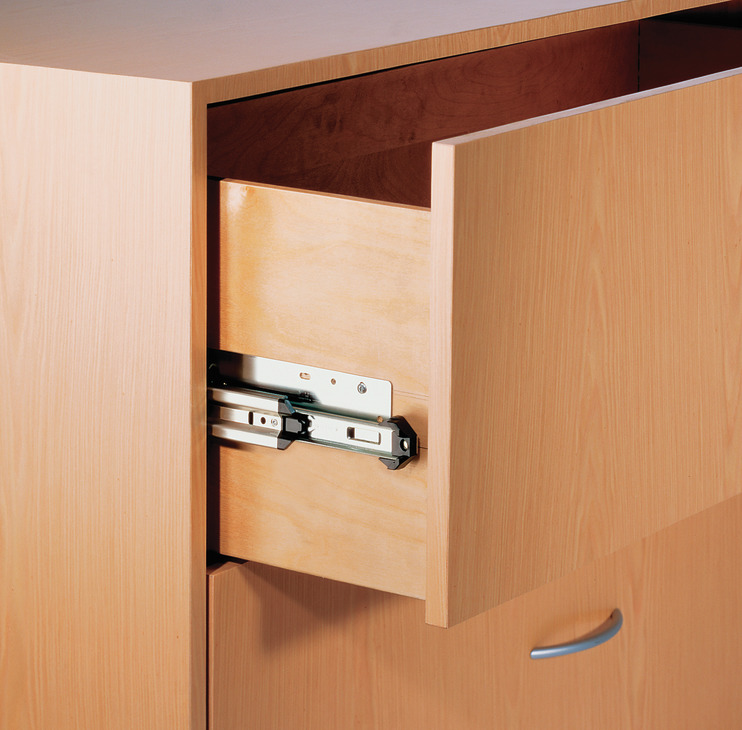

Hafele 422.45.932 Interlocking Ball Bearing Slide, Accuride C3641/3642, overtravel, full extension, steel, zinc plated, 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.45.932

  Product Title: Accuride 3641/3642 Side Mount, Interlocking Drawer System, 1" Overtravel; 180 lbs Weight Capacity, 14"

  Category: Accuride 3641/3642 Side Mount, Interlocking Drawer System, 1" Overtravel; 180 lbs Weight Capacity,

  Item Details …

  - Hold-in detent to prevent roll-out and bouce back

  - One piece rail-an-pocket mount/disconnect

  - Interfaces with central locking systems

  - Slides are unhanded, rails are handed

  - Load bearing capacity : 82.00 kg

  - Load bearing capacity : Per pair: 180 lbs

  - Mounting : Side mounted

  - Version : Interfaces with central locking system

  - Color/finish : Zinc

  - Model : C3641/3642

  - Type of pull out : Full extension

  - Area of application : Commercial or residential filing cabinet drawers requiring interlock

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Supplied with:

  - 2 interlocking slides (3641)

  - 2 non-interlocking slides (3642)

  - 4 mounting rails

  - 2 - 12" aluminum rods

  - 2 mounting hardware kits
