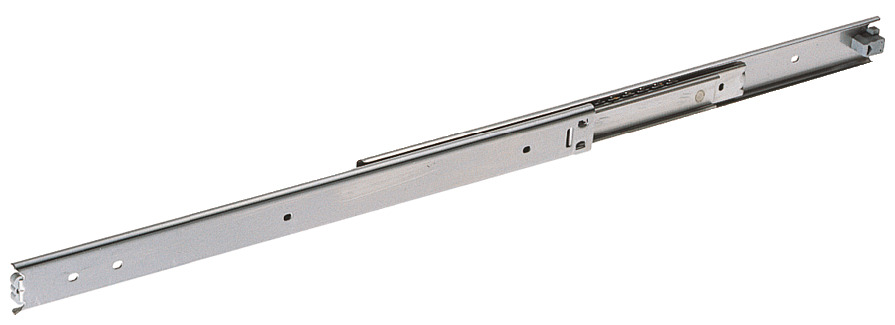

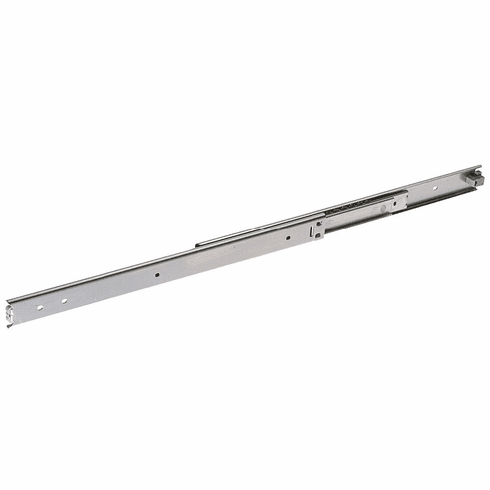

Hafele 422.39.050 Ball Bearing Drawer Runners, Full Extension, Load Capacity 45-65 kg, Accuride 0330 SS High grade stainless steel, Installed length 500 mm, load capacity 57 kg

Product Information

• Description

  Hafele 422.39.050 Ball Bearing Drawer Runners, Full Extension, Load Capacity 45-65 kg, Accuride 0330 SS
  High grade stainless steel, Installed length 500 mm, load capacity 57 kg



  Installation length : 500 mm

  Extension length : 501 mm

  Load bearing capacity : 57 kg

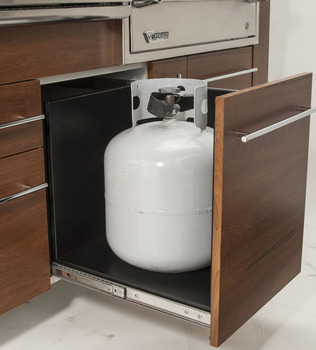

  Application : Suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment

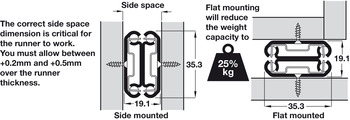

  Installation : Side or base mounted
  32 mm drilling pattern

  Features : Hold-in feature holds the closed drawer in

  Material : High grade stainless steel (1.4301 x 5Cr Ni 1810)



  Order reference :

  Order Hospa 4.0 countersunk screws separately

  Fixings: Max. head height 2.5 mm, 9.6 mm





• Specifications

  Hafele 422.39.050 Accuride Ss0330-20P Sta St Full Ext 143 Lb (50X1.91X3.54 Cm) - 1 Pr


  Product Specifications:
