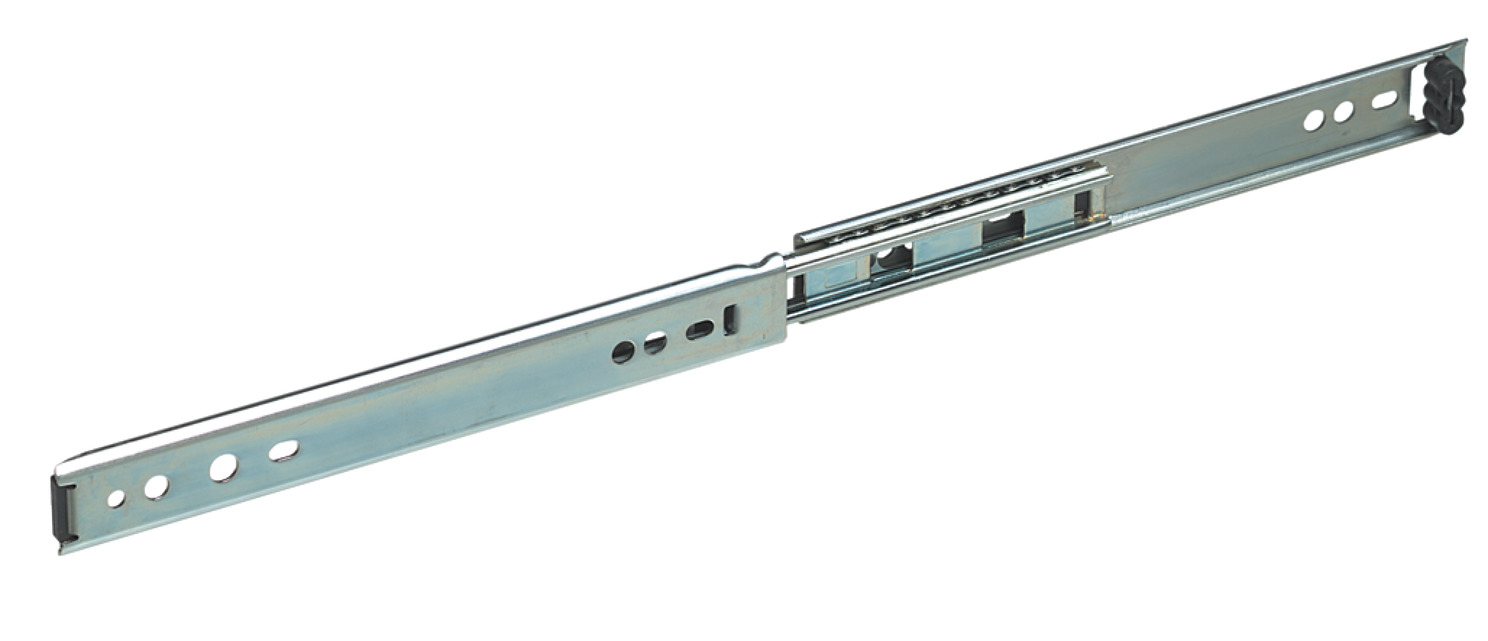

Hafele 422.34.930 Ball bearing runners, full extension, Accuride 2601, load-bearing capacity up to 45 kg, steel, side mounting installation length: 300 mm

Product Information

• Description

  Hafele 422.34.930 Ball bearing runners, full extension, Accuride 2601, load-bearing capacity up to 45 kg, steel, side mounting
  installation length: 300 mm

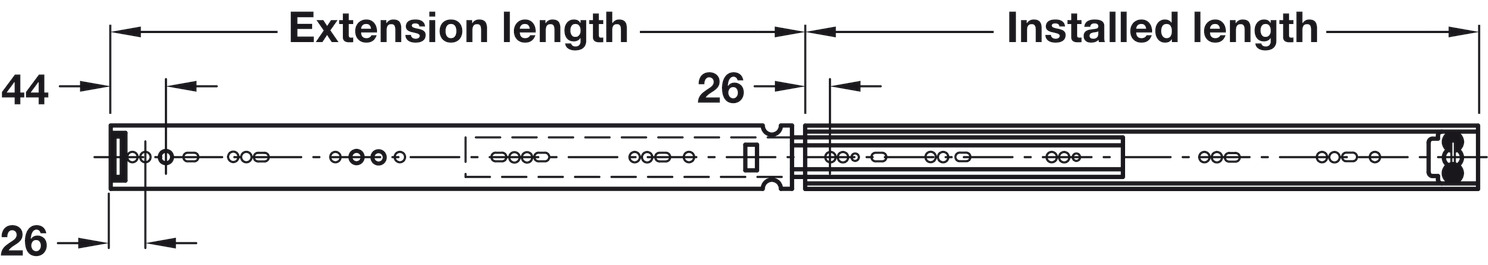

  Installed length L : 300 mm

  Extension length AL : 308 mm

  Load bearing capacity : 35 kg

  Features : With hold-in device for holding in closed position

  Material : Steel

  Finish : Galvanized

  Size : Max. drawer width = internal cabinet width - 25.4

  Installation : At drawer, side mounted



  Optional items:
  Varianta special screws with countersunk head 5.0 mm for cabinet rail
