Hafele 422.33.863 Ball Bearing Runners, Full Extension, Accuride 9308, Side/Surface Mounted, Weight Capacity 500 lbs for right hand use, length: 610 mm, installation: For right hand use only 9308

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.33.863

  Product Title: Ball Bearing Runners, Full Extension, Accuride 9308, Side/Surface Mounted, Weight Capacity 500 lbs, for right hand use, length: 610 mm, installation: For right hand use only 9308

  Category: Ball Bearing Runners, Full Extension, Accuride 9308, Side/Surface Mounted, Weight Capacity 500 lbs, for right hand use, length: 610 mm, installation: For right hand use only 9308

  Item Details …

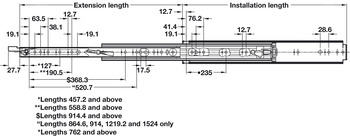

  - Installation length : 610.00 mm

  - Extension length : 610.00 mm

  - Load bearing capacity : 227.00 kg

  - Version : Locking in extended and closed position, lever operatedThe use on worktop platforms with access for persons is not permitted

  - Color/finish : Zinc plated, Galvanized

  - Model : 9308

  - Type of pull out : Full extension

  - Area of application : For heavy loads

  - Removing the running track : without release lever

  - Material : Steel

  - Installation : 9308 for right hand use only

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for 9301/9308

  Installation instructions



• Videos

  Play: Installation video for Accuride 9308, full extension
