Hafele 422.32.940 Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity Shop pack, 16" length

Product Information

• Description

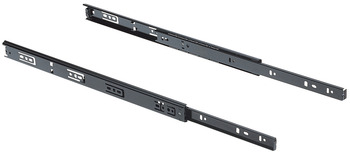

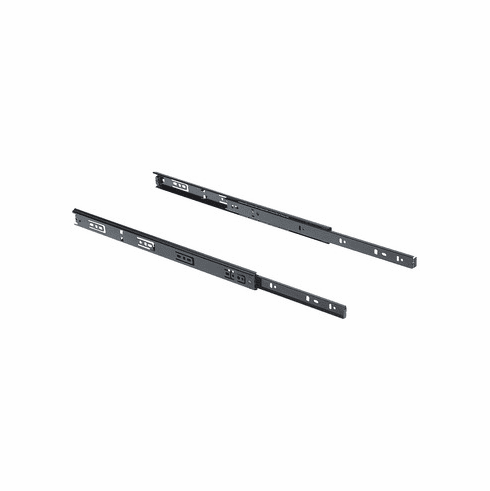

  Hafele 422.32.940 Accuride 2132 Side Mounted Cam Adjust Slide, 3/4 Extension, 75 lbs Weight Capacity
  Shop pack, 16" length



  Model series : 2132

  Load bearing capacity : (75 lbs) 34 kg

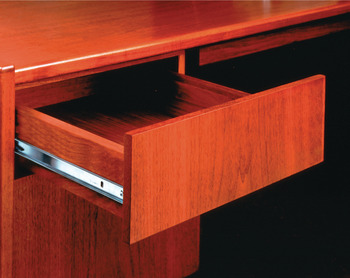

  Application : Drawers up to 16" wide, For commercial and residential furniture

  Type of pull out : 3/4 extension with hold-in detent

  Version : Features low profile for shallow drawers (1 3/8"), Easy lever disconnect

  Mounting : Side mounted

  Material : Steel

  Finish : Zinc



  Optional items:
  Optional Face Frame Bracket, for Accuride 2132 Side Mounted Slide

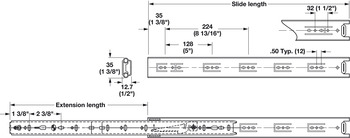

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.48-8.48.pdf

  Hafele 422.32.940, 422-32-940, 42232940, 422.32


  Specifications/Hafele Catalog - Page# FC8.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Catalog Pages

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Installation Manuals

  Click: :Accuride 2132 Mounting Instru
