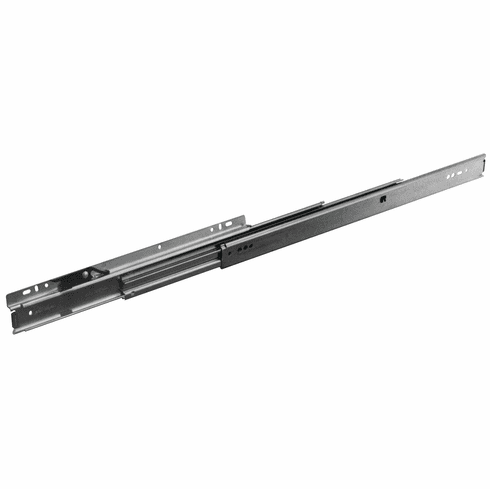

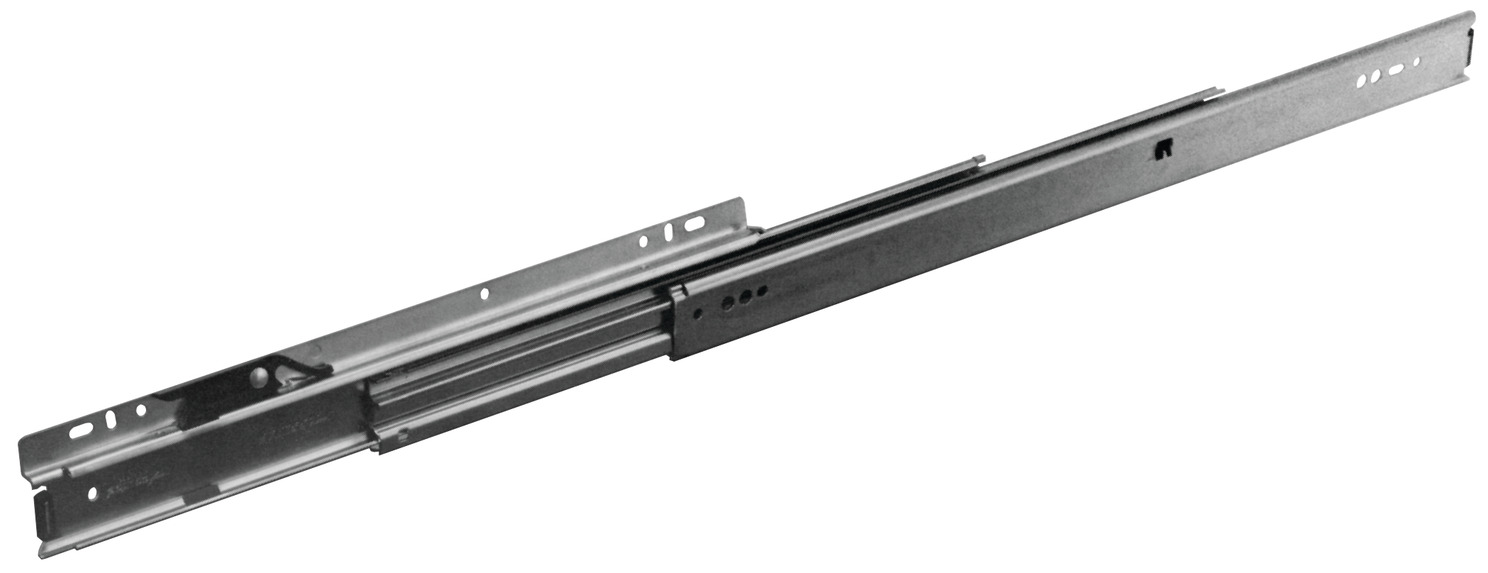

Hafele 422.29.940 Accuride 7432 Progressive Side Mounted Slide, Full Extension, 100 lbs Weight Capacity Shop pack, zinc-plated, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.29.940

  Product Title: Accuride 7432 Progressive Side Mounted Slide, Full Extension, 100 lbs Weight Capacity, Shop pack, zinc-plated, 16"

  Category: Accuride 7432 Progressive Side Mounted Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - X pack: 5 pairs

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mountedRail mounted for easy drawer installation and removal

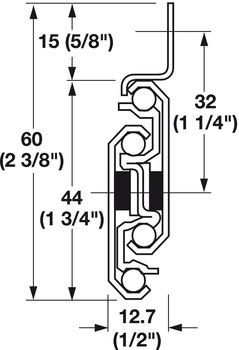

  - Version : ProgressiveLow profile - 60 mm (2 3/8")

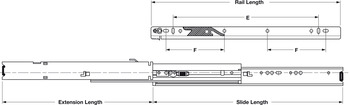

  - Type of pull out : Full extension

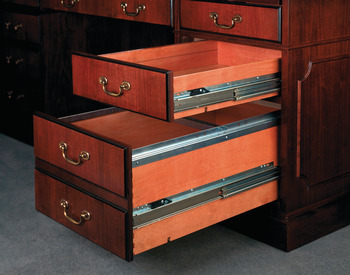

  - Area of application : Drawers up to 24" wide

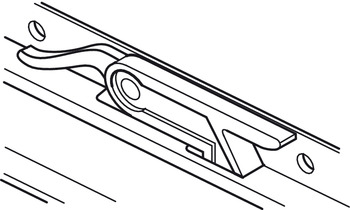

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mountedRail mounted for easy drawer installation and removal

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Mounting screws


  Additional Information …

  X pack: 5 pairs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 7432-7434 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.100



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.29.940, 422-29-940, 42229940, 422.29


  Specifications/Hafele Catalog - Page# FC8.47: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
