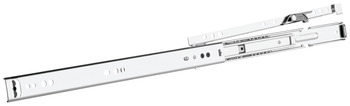

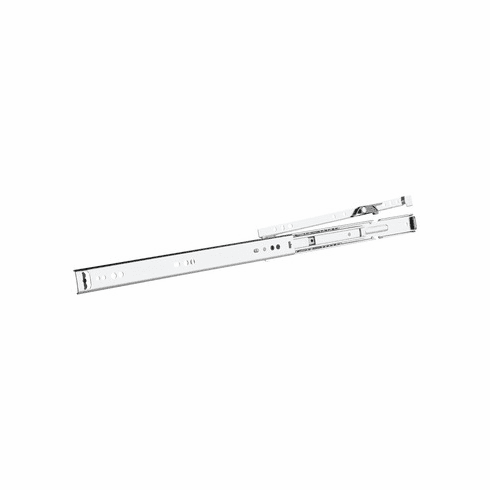

Hafele 422.24.402 Accuride 2632 Side Mounted Slide, Full Extension, 65 lbs Weight Capacity Zinc, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.24.402

  Product Title: Accuride 2632 Side Mounted Slide, Full Extension, 65 lbs Weight Capacity, Zinc, 16"

  Category: Accuride 2632 Side Mounted Slide, Full Extension, 65 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 29.00 kg

  - Load bearing capacity : Per pair: 75 lbs

  - Mounting : Side mounted

  - Version : Ball bearingLow profileRail mount/disconnectSilenced in and out

  - Type of pull out : Full extension

  - Area of application : Drawers up to 16" wide

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 224.00 mm

  - Installation : Side mounted

  - Load bearing capacity per pair : 30.00 kg

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 2632 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.84



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.47-8.47.pdf

  Hafele 422.24.402, 422-24-402, 42224402, 422.24
