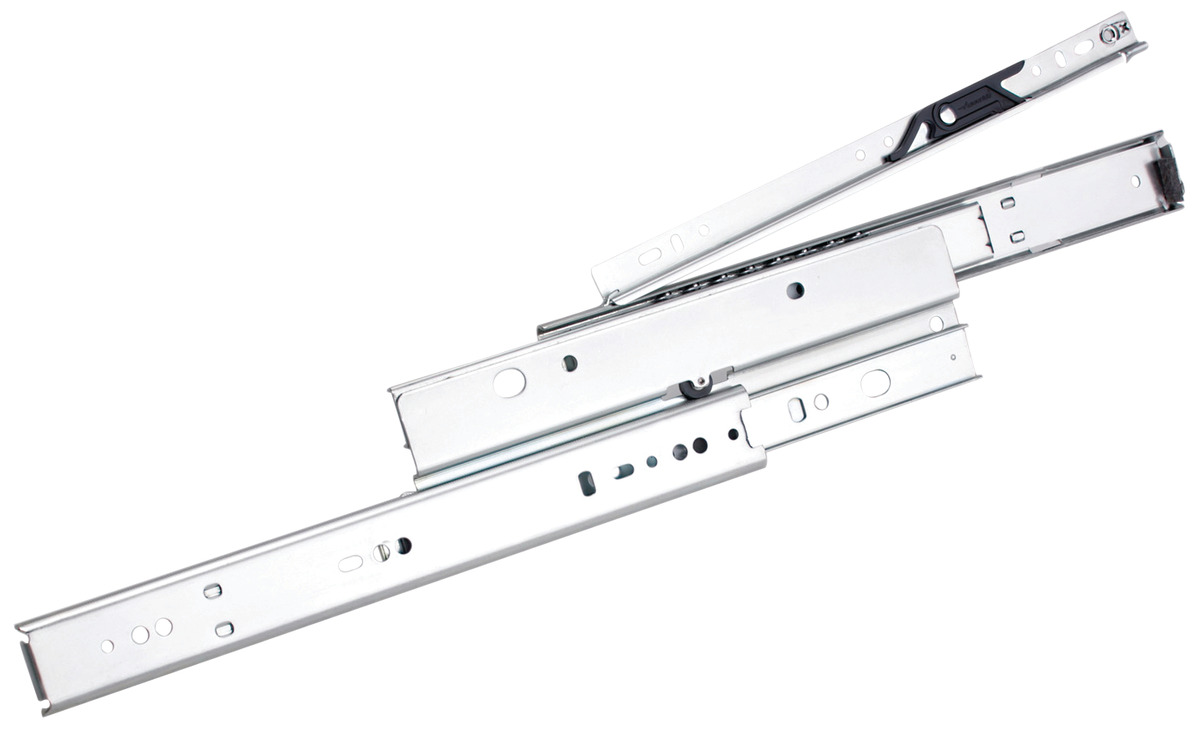

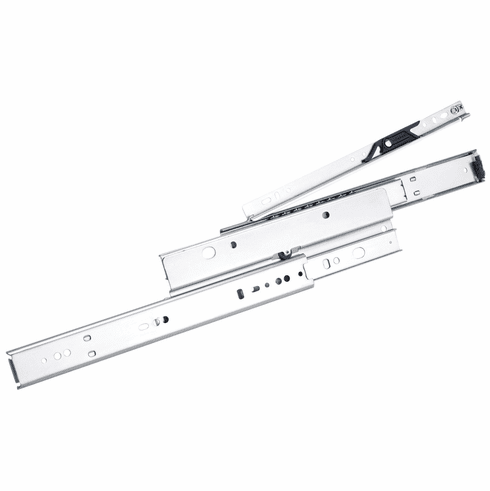

Hafele 422.17.407 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity Shop pack, zinc, 16"

Product Information

• Description

  Hafele 422.17.407 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity
  Shop pack, zinc, 16"



  Model series : 4034

  Features : Progressive

  Mounting : Side mounted

  Load bearing capacity : Per pair: (150 lbs) 68 kg

  Drawer width : Max: (24") 610 mm

  Type of pull out : Full extension with 1 1/2" overtravel and hold-in detent

  Application : For file drawer applications in desks, credenzas, lateral files, store fixtures and institutional furniture

  Material : Steel

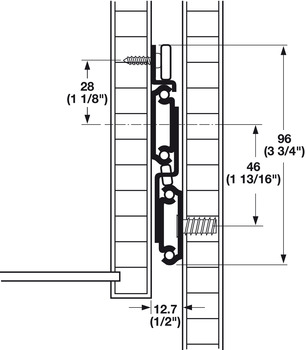

  B : 320 mm





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.64-8.64.pdf

  Hafele 422.17.407, 422-17-407, 42217407, 422.17


  Specifications/Hafele Catalog - Page# FC8.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
