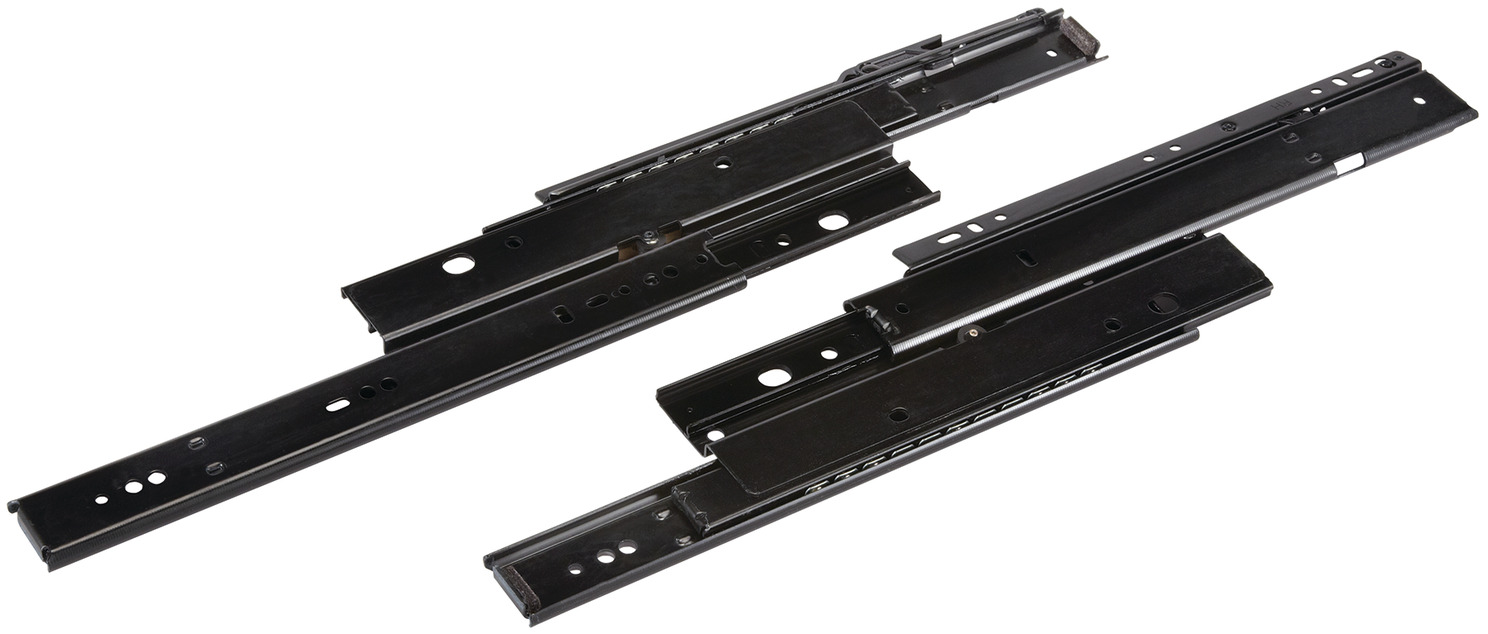

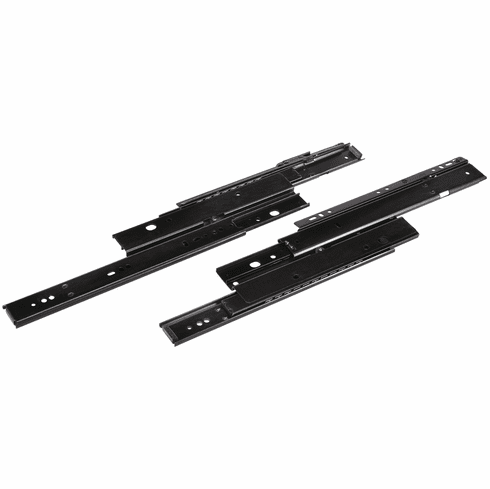

Hafele 422.17.363 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity Shop pack, black, 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.17.363

  Product Title: Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity, Shop pack, black, 14"

  Category: Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity,

  Item Details …

  - 32 mm system compatible

  - Features handed slides with steel ball-bearings

  - Rail mounted for easy drawer installation and removal

  - Load bearing capacity : 68.00 kg

  - Load bearing capacity : Per pair: 150 lbs

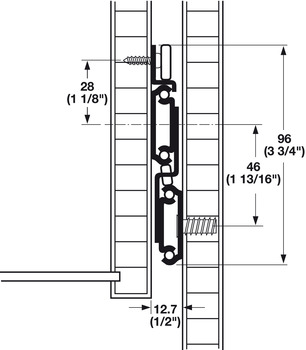

  - Mounting : Side mounted

  - Version : Progressive

  - Type of pull out : Full extension

  - Area of application : For file drawer applications in desks, credenzas, lateral files, store fixtures and institutional furniture

  - Holding function : Hold-in

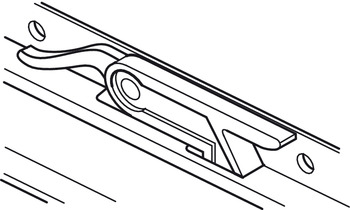

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Load bearing capacity per pair : 68.00 kg

  - Supplied with:

  - Shop pack: 1 pair slides, rails & mounting screws

  - X pack: 5 pair slides

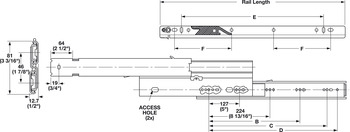

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 4034 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.103



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.64-8.64.pdf

  Hafele 422.17.363, 422-17-363, 42217363, 422.17


  Specifications/Hafele Catalog - Page# FC8.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
