Hafele 422.17.354 Ball Bearing Slide, Accuride C4034, overtravel, full extension, steel, zinc-plated, 150 lbs, 14" (1 pair)Zoom

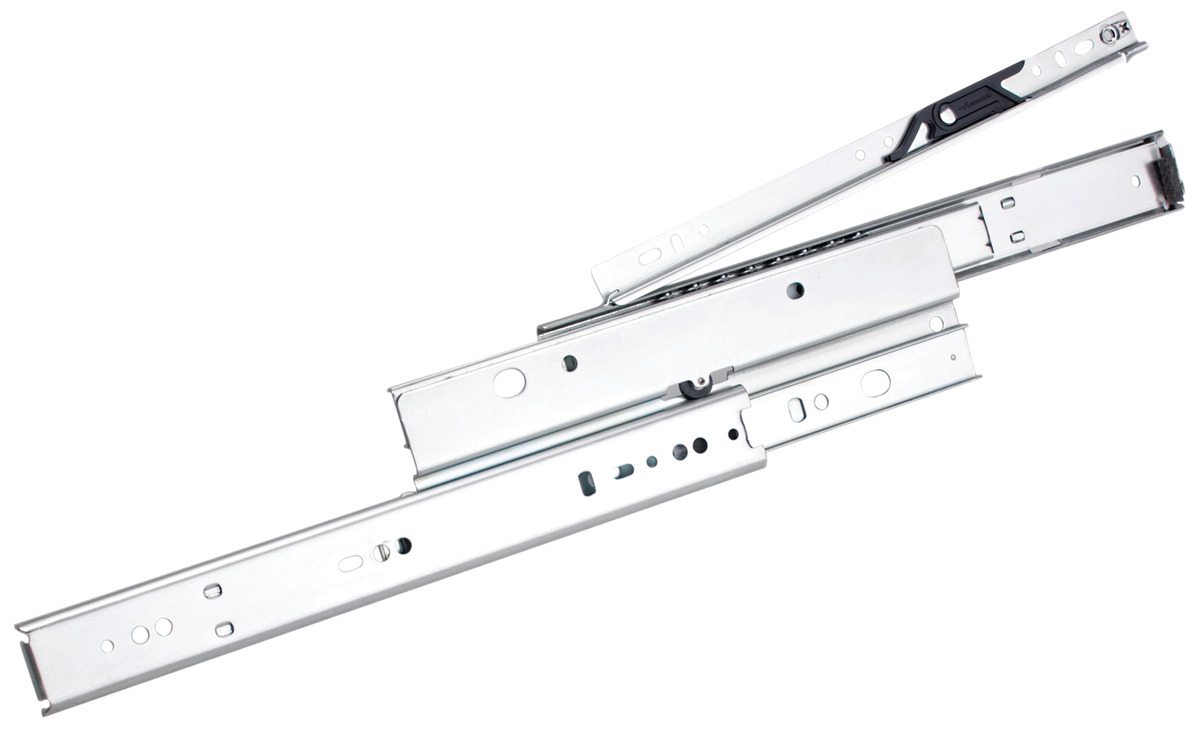

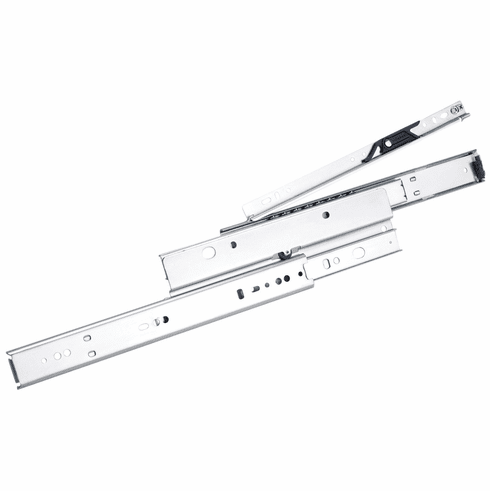

Hafele 422.17.354 Ball Bearing Slide, Accuride C4034, overtravel, full extension, steel, zinc-plated, 150 lbs, 14" (1 pair)

$35.70$44.62You Save: $8.92 (20%)
Item# Hafele-422-17-354
Availability: in stock

Product Information

  • Description

    Hafele 422.17.354 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity
    Shop pack, zinc, 14"



    Model series :
    4034


    Features :
    Progressive

    Mounting :
    Side mounted

    Load bearing capacity :
    Per pair: (150 lbs) 68 kg

    Drawer width :
    Max: (24") 610 mm

    Type of pull out :

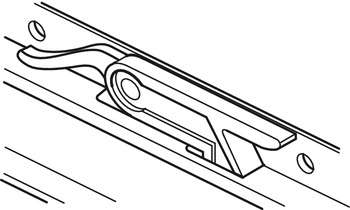

    Full extension with 1 1/2" overtravel and hold-in detent

    Application :
    For file drawer applications in desks, credenzas, lateral files, store fixtures and institutional furniture

    Material :
    Steel



  • Specifications

    For detailed PDF specifications, click:
    Hafele Catalog Page: selection_8.64-8.64.pdf

    Hafele 422.17.354, 422-17-354, 42217354, 422.17

    Specifications/Hafele Catalog - Page# FC8.50:
    Click to: Show catalog here ...
    Click to: Show catalog in a new page.
    Return to: Hafele Drawer Slides Catalog
    Return to: All Hafele Catalogs
