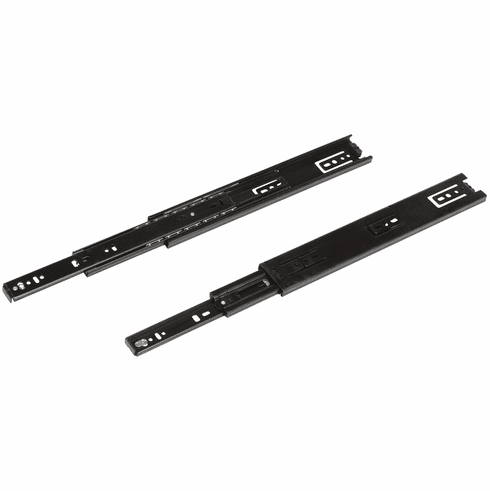

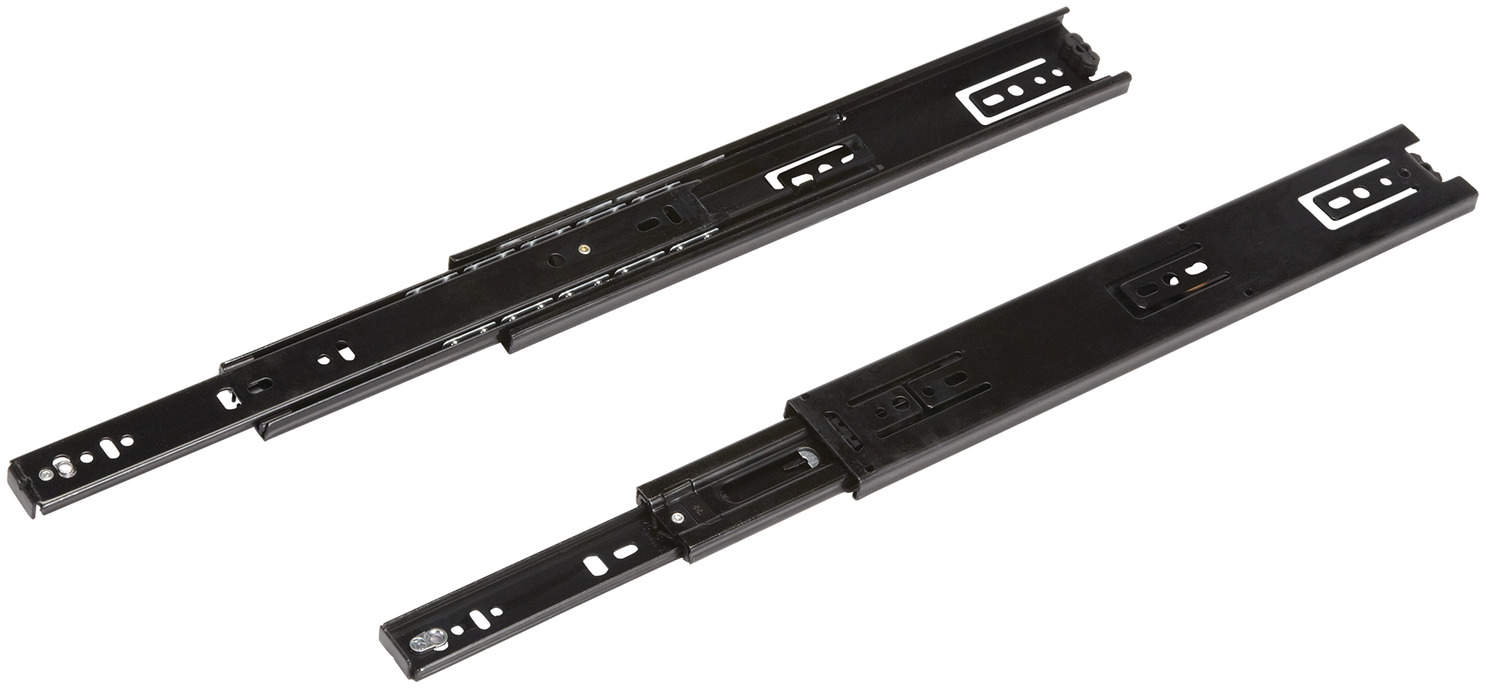

Hafele 422.16.562 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity Black, 22"

Product Information

• Description

  Hafele 422.16.562 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity
  Black, 22"



  Model series : 3834

  Mounting : Side mounted

  Load bearing capacity : Per pair: (90 lbs) 41 kg

  Application : For drawers up to 406 mm (16") wide

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Telescopic
  Features low profile for shallow drawers
  Lever disconnect
  BHMA certified to Grade 1 HD-100

  Material : Steel



  Optional items:
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
