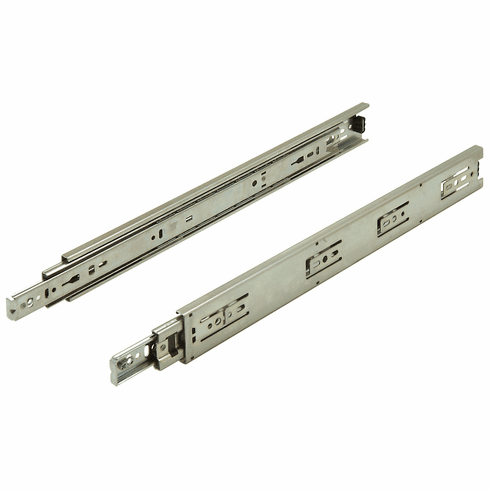

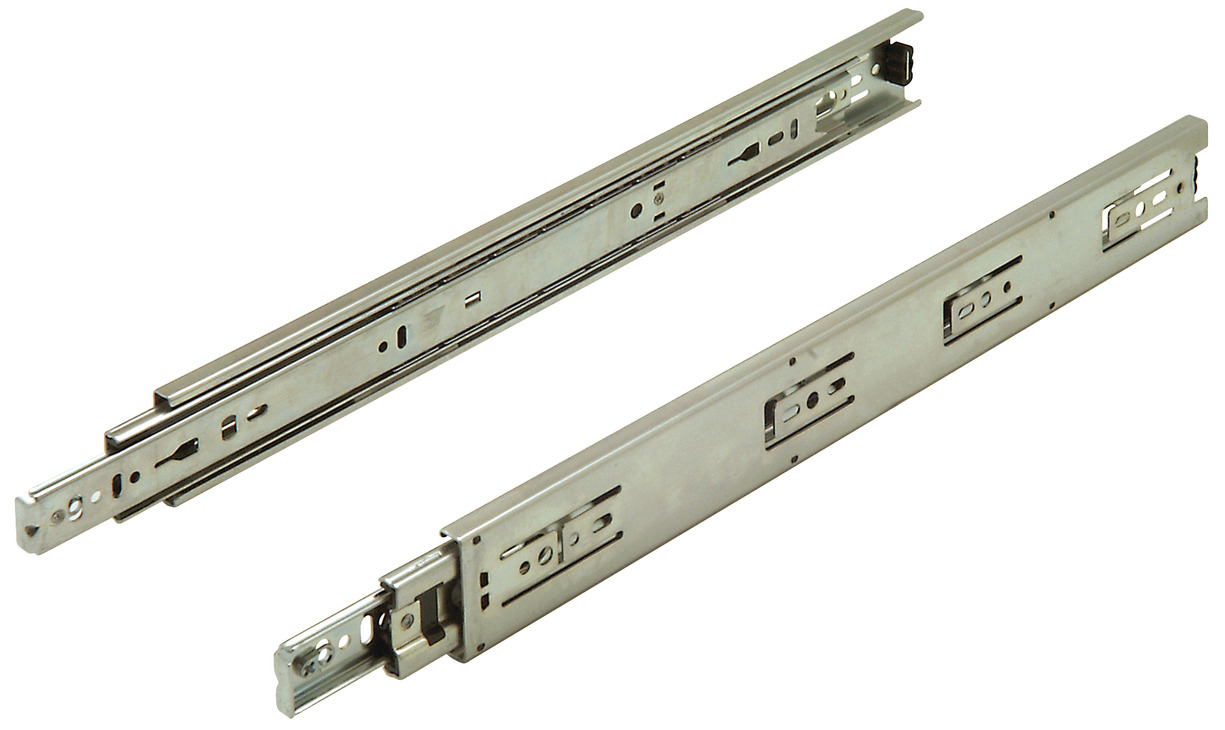

Hafele 422.16.302 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity Zinc, 12"

Product Information

• Description

  Hafele 422.16.302 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity
  Zinc, 12"



  Model series : 3834

  Mounting : Side mounted

  Load bearing capacity : Per pair: (90 lbs) 41 kg

  Application : For drawers up to 406 mm (16") wide

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Features : Telescopic
  Features low profile for shallow drawers
  Lever disconnect
  BHMA certified to Grade 1 HD-100

  Material : Steel



  Optional items:
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.51-8.51.pdf

  Hafele 422.16.302, 422-16-302, 42216302, 422.16


  Specifications/Hafele Catalog - Page# FC8.37: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
