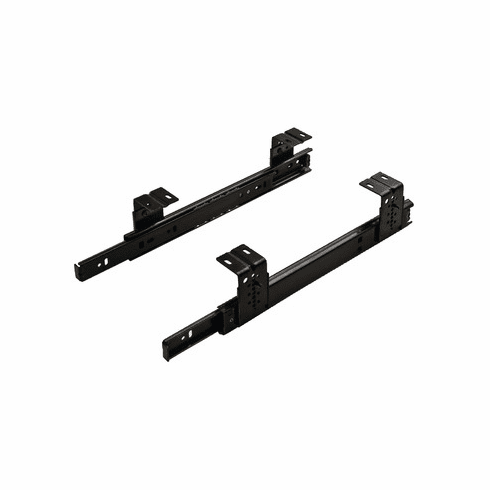

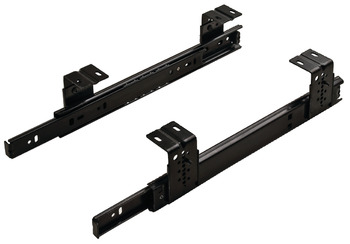

Hafele 422.14.360 Accuride 2109 Keyboard/Pencil Drawer Top Mounted Slide, 3/4" Extension, 75 lbs Weight Capacity 24"

Product Information

• Description

  Hafele 422.14.360 Accuride 2109 Keyboard/Pencil Drawer Top Mounted Slide, 3/4" Extension, 75 lbs Weight Capacity
  24"



  Model series : 2109

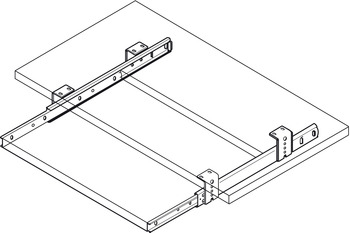

  Mounting : Top mounted

  Load bearing capacity : Per pair: (75 lbs) 34 kg

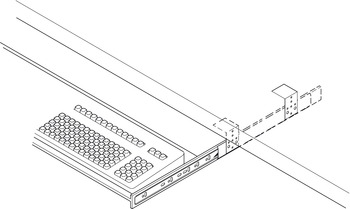

  Application : For computer keyboard, printer shelf and pencil drawer applications
  For drawers up to 406mm (16") wide

  Features : With lever disconnect

  Type of pull out : 3/4 extension with detent-out

  Adjustment : Features mounting brackets that are height adjustable and reversible

  Material : Steel

  Color : Black

  A : 128 mm

  B : 224 mm

  C : 320 mm

  D : 542 mm

  E : 292 mm





• Specifications

  Hafele 422.14.360, 422-14-360, 42214360, 422.14
