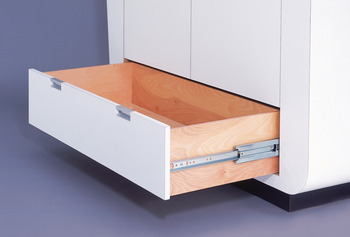

Hafele 422.10.635 Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.10.635

  Product Title: Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity, 14"

  Category: Accuride 9301E Heavy Duty Non-Disconnect Mounted Slide, Full Extension; 600 lbs Weight Capacity,

  Item Details �

  - Extra heavy duty

  - The 9300 E slide family has been enhanced to deliver a payload of up to 600 lbs

  - Reduced migration and smoother travel

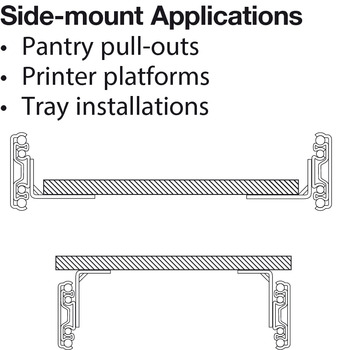

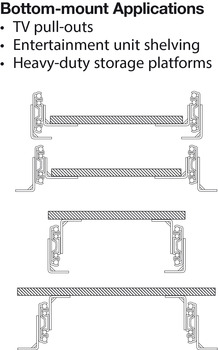

  - Mounting : Side/bottom mounted

  - Version : Accuride 9301: For left and right hand use, Accuride 9308: Locking in extended and in closed position, lever operatedAccuride 9301 and Accuride 9308 are compatiblethe use on worktop platforms with access for persons is not permitted

  - Color/finish : Zinc-plated

  - Model : 9301

  - Type of pull out : Full extension

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side/bottom mounted

  - Supplied with:

  - Packing: 4

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.107



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
