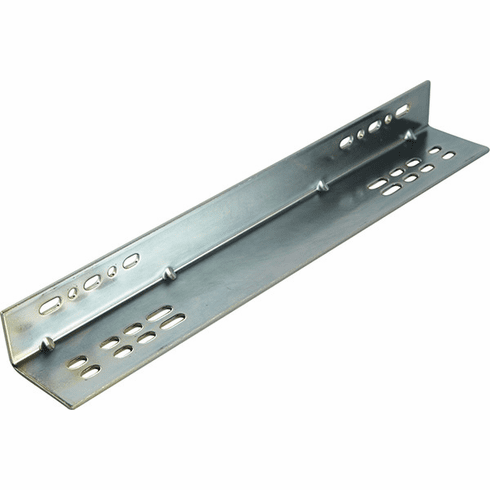

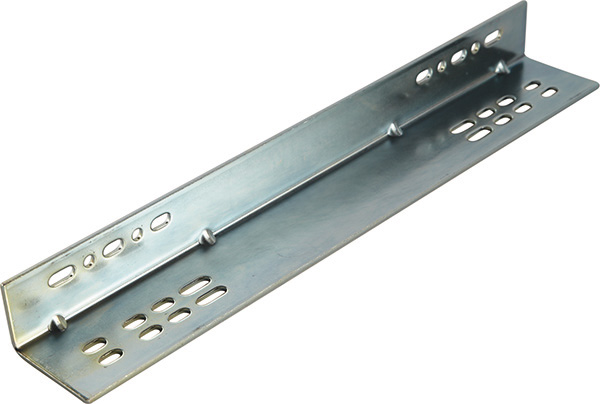

Hafele 422.10.003 Bracket, for 9301 Accuride, For 16" side length, model 4180-0472-XE

Product Information

• Description

  Hafele 422.10.003 Bracket, for 9301
  Accuride, For 16" side length, model 4180-0472-XE



  Material : Steel

  Mounting : Brackets allow for two mounting options:
  1. Bottom Mount:
  One bracket attached to the outer member of the slide and the base of the cabinet. The other bracket attached to the inner member of the slide and the platform or tray.
  2. Side Mount:
  The slide€™s o

  Model series : 9301



  Optional items:
  Accuride 9301 Heavy Duty Side/Bottom Mounted Slide, Full Extension; 150/500 lbs Weight Capacity


• Specifications



  Please contact us for more information about this product
