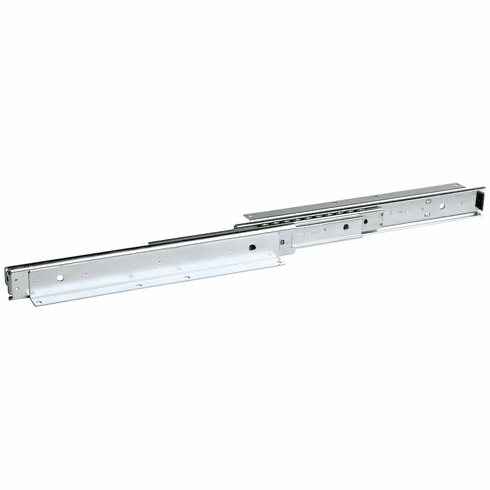

Hafele 422.08.310 Accuride 301-2590 Overview Base Mounted Slide, 7/8" Extension 14"

Product Information

• Description

  Hafele 422.08.310 Accuride 301-2590 Overview Base Mounted Slide, 7/8" Extension
  14"



  Model series : 301-2590

  Mounting : Base mounted

  Application : For kitchen pantry slide-out units, TV shelves, store fixtures, and institutional furniture applications
  For drawers up to 406 mm (16") wide

  Type of pull out : Over Extension with 7/8" overtravel and hold-in detent

  Features : Heavy-duty, non-disconnect with top and bottom mounting brackets

  Material : Steel

  Finish : Zinc

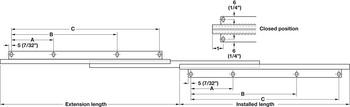

  A : 102 mm

  B : 203 mm

  C : 305 mm





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.76-8.76.pdf

  Hafele 422.08.310, 422-08-310, 42208310, 422.08


  Specifications/Hafele Catalog - Page# FC8.60: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
