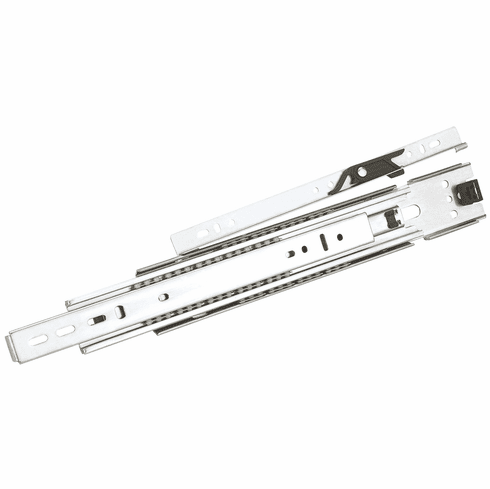

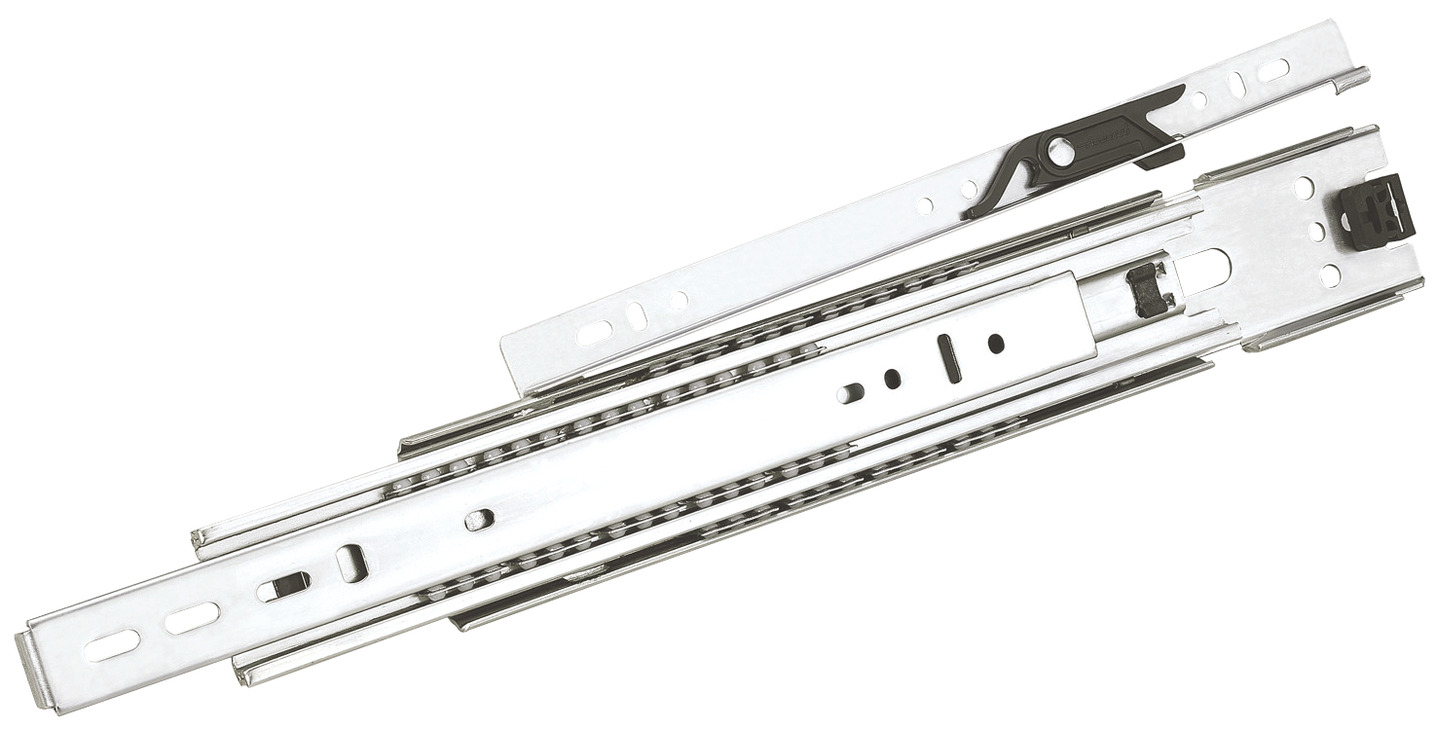

Hafele 422.06.600 Accuride 3017 Telescopic Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity 24"

Product Information

• Description

  Hafele 422.06.600 Accuride 3017 Telescopic Side Mounted Slide, 1" Overtravel; 100 lbs Weight Capacity
  24"

  Note: This product can only be purchased in minimum quantity of 5



  Model series : 3017

  Mounting : Side mounted

  Type of pull out : Full extension with 1" overtravel and hold-in detent

  Load bearing capacity : Per pair: (100 lbs.) 45 kg

  Features : Telescopic

  Application : For desk/credenza box and file drawer applications

  Drawer width : Maximum drawer width (24") 610 mm

  Material : Steel

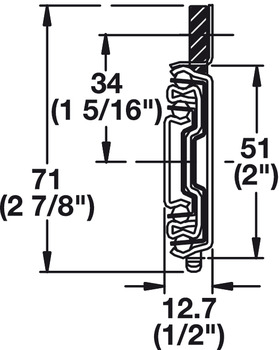

  A : 330 mm

  B : 457 mm

  C : 510 mm

  D : 535 mm

  E : 555 mm

  Contents : 5 slides





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.06.600, 422-06-600, 42206600, 422.06


  Specifications/Hafele Catalog - Page# FC8.49: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
