Hafele 422.05.027 Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity P Pack; 24", Model C3634 - 24P

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.05.027

  Product Title: Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity, P Pack; 24", Model C3634 - 24P

  Category: Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity,

  Item Details …

  - Includes hold-in detent to help hold drawers in a closed position

  - In-and-out stops silenced for quiet operation

  - 1� over travel for full access to drawer contents

  - Accommodates drawers up to 42� wide to expand potential applications

  - .78� cross-section width

  - Lever disconnect allows for easier drawer removal and reinsertion

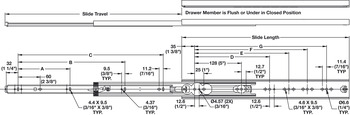

  - Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2� or 3/4� side space.

  - Slides are unhanded, which also helps speed and ease of installation

  - RoHS compliant

  - Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening

  - Side space: .78 + .000/-.02 [19.8 mm +0/-.5]

  - Disconnect: Handed lever disconnect

  - Installation length :

  - Extension length :

  - Load bearing capacity : Side mount per pair: 200 lbs; Flat mount per pair: 75 lbs

  - Mounting : Side or flat mount

  - Color/finish : Zinc-plated

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 19.80 mm

  - Width (inch) : .78"

  - Height : 53.10 mm

  - Height (inch) : 10 3/8"

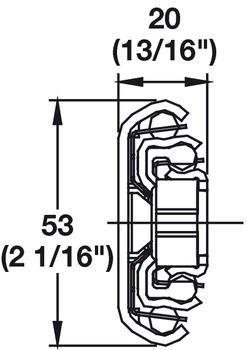

  - Dim. (W x H) : 19.8 x 53.1 mm

  - Installation : Side or flat mount

  - Order reference

  - D Pack - Polybag includes one pair of slides with moutning screws.

  - P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.98



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.69-8.69.pdf
