Hafele 422.05.005 Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity D Pack; 20", Model C3634 - 20D

Product Information

• Description

  Hafele 422.05.005 Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity
  D Pack; 20", Model C3634 - 20D



  Model series : 3634

  Suitable for : Wider drawers and trays used for storage in retail fixtures, restaurants, medical facilities and business offices as well as residential kitchens, garages and more

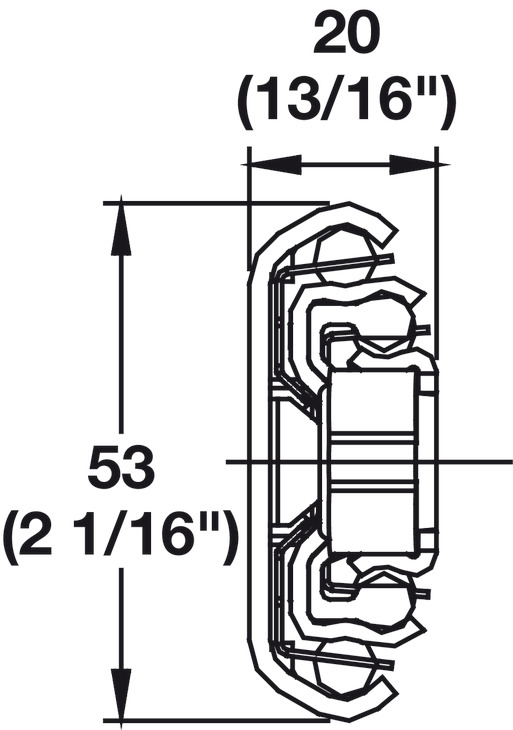

  Height : (2.09") 53.1 mm

  Width : (.78") 19.8 mm

  Load bearing capacity : Side mount per pair: (200 lb) 91 kg
  Flat mount per pair: (75 lb) 34 kg

  Travel : Over travel: (1") 25.4 mm

  Mounting : Side or flat mount

  Material : Steel

  Finish : Zinc-plated

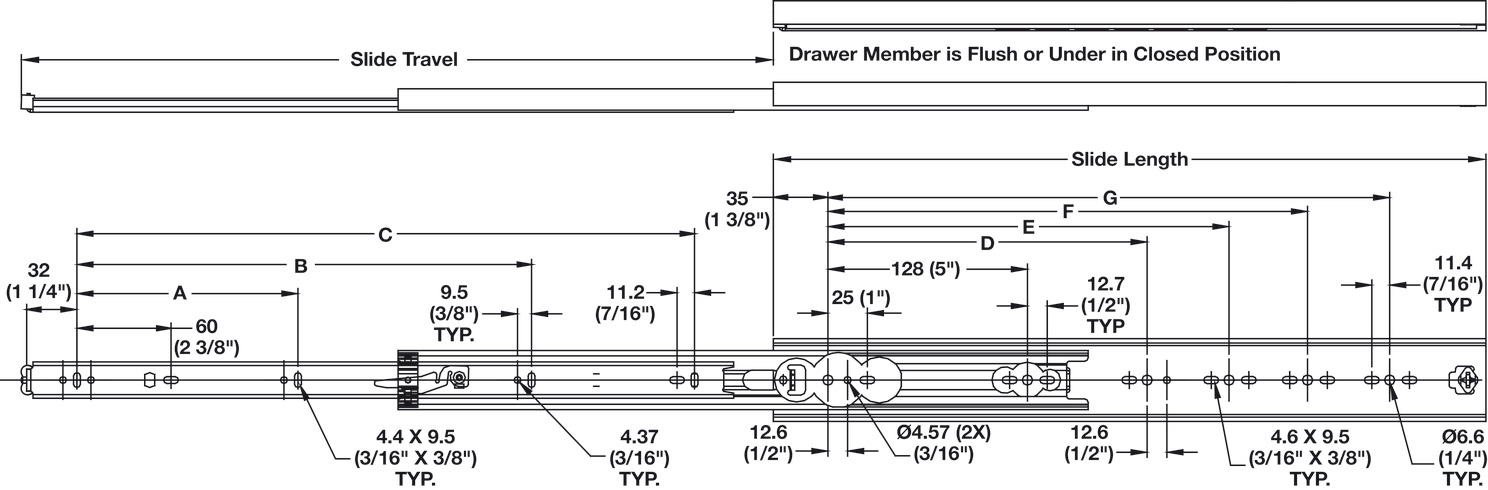

  A : 142 mm

  B : 333 mm

  C : 447 mm

  D : 224 mm

  E : 352 mm



  Order reference :

  • D Pack - Polybag includes one pair of slides with moutning screws.
  • P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
