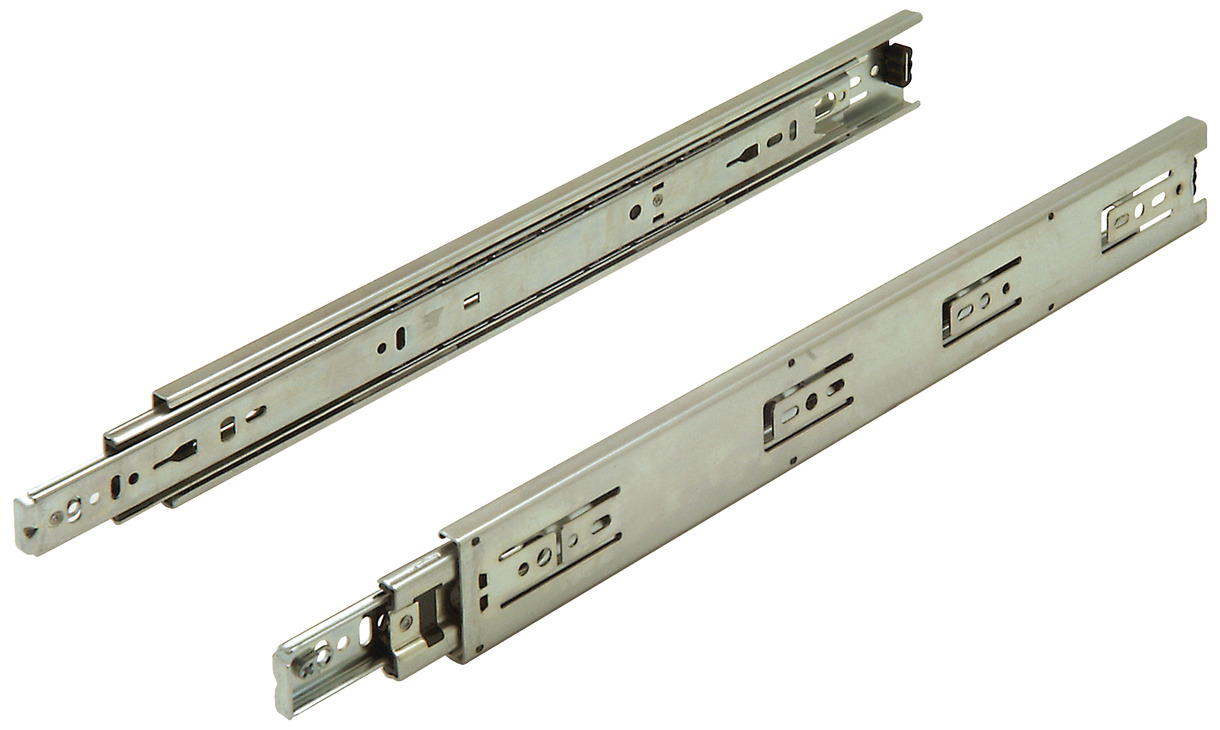

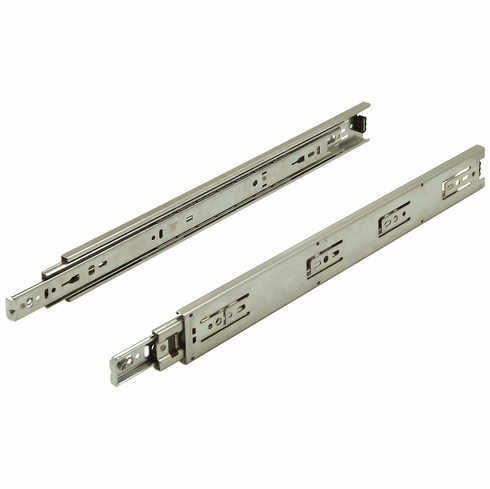

Hafele 422.04.845 Accuride CH3832 Weather Resistant, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity 18"

Product Information

• Description

  Hafele 422.04.845 Accuride CH3832 Weather Resistant, Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity
  18"



  Model series : CH3832

  Mounting : Side mounted

  Type of pull out : Full extension

  Application : For drawers up to 610mm (24") wide

  Load bearing capacity : Per pair: (100 lbs) 45 kg

  Material : Steel

  Finish : Zinc electroplated



  Optional items:
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.04.845, 422-04-845, 42204845, 422.04


  Specifications/Hafele Catalog - Page# FC8.45: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
