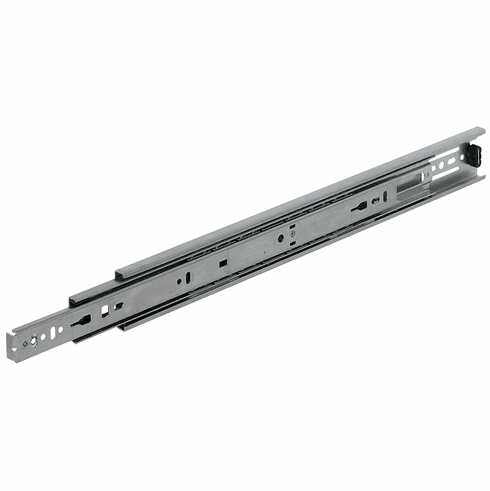

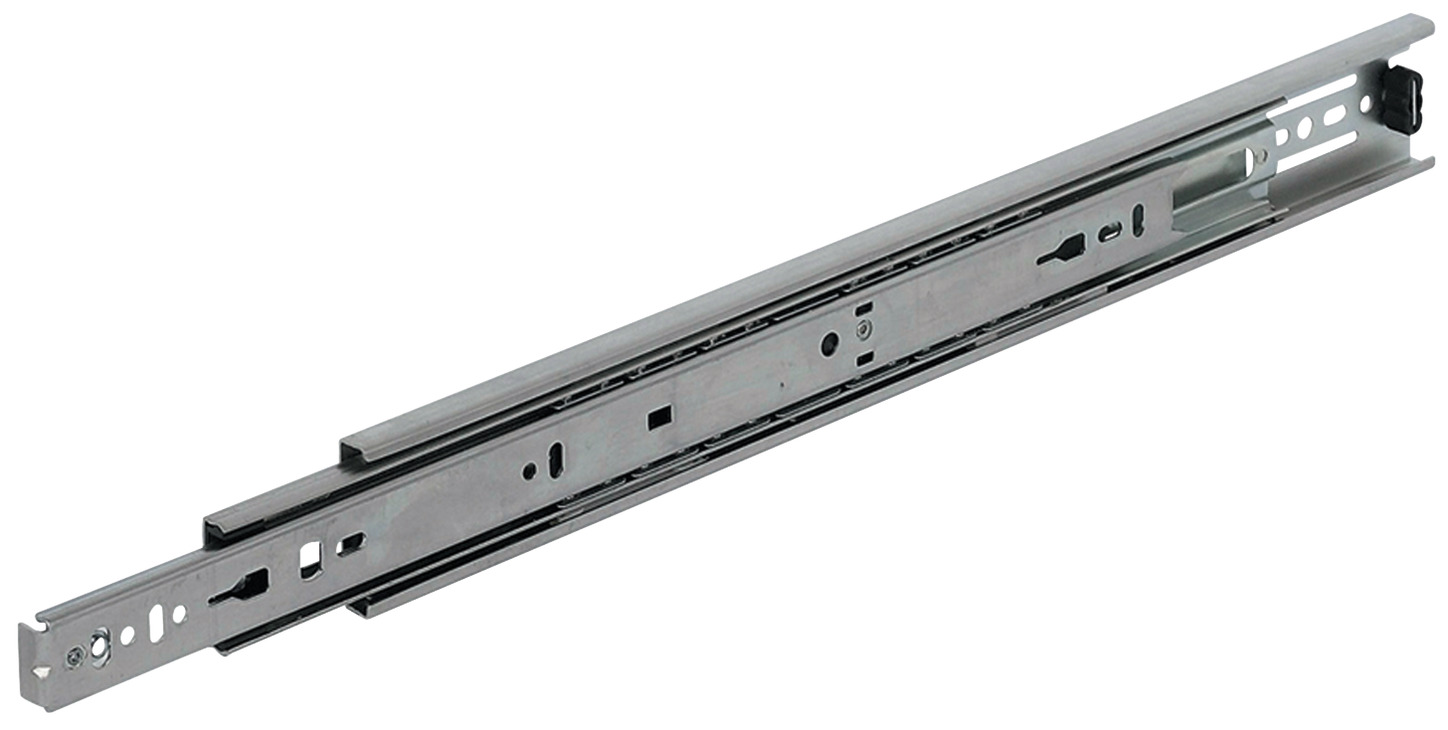

Hafele 422.04.624 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Bulk pack, white, 24" Installed and extension length

Product Information

• Description

  Hafele 422.04.624 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity
  Bulk pack, white, 24" Installed and extension length



  Model series : 3832

  Mounting : Side mounted

  Type of pull out : Full extension, Telescopic with hold-in detent

  Application : For drawers up to 610 mm (24") wide

  Load bearing capacity : Per pair: (100 lbs) 45 kg

  Features : Lever disconnect
  Hold-in detent
  BHMA certified to Grade 1 HD-100

  Material : Steel



  Optional items:
  Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.49-8.50.pdf

  Hafele 422.04.624, 422-04-624, 42204624, 422.04


  Specifications/Hafele Catalog - Page# FC8.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
