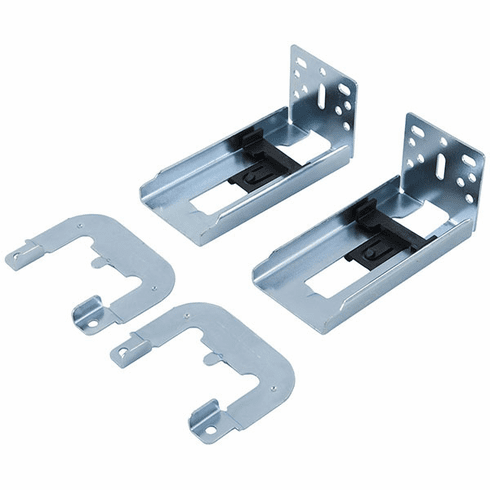

Hafele 422.04.002 Face Frame Bracket, for Accuride 3832DO, 3832TR, 3832HDTR Side Mounted Slides 4180-0661-XE

Product Information

• Description

  Hafele 422.04.002 Face Frame Bracket, for Accuride 3832DO, 3832TR, 3832HDTR Side Mounted Slides
  4180-0661-XE



  Model : 4180-0661-XE

  Material : Steel

  Finish : Zinc

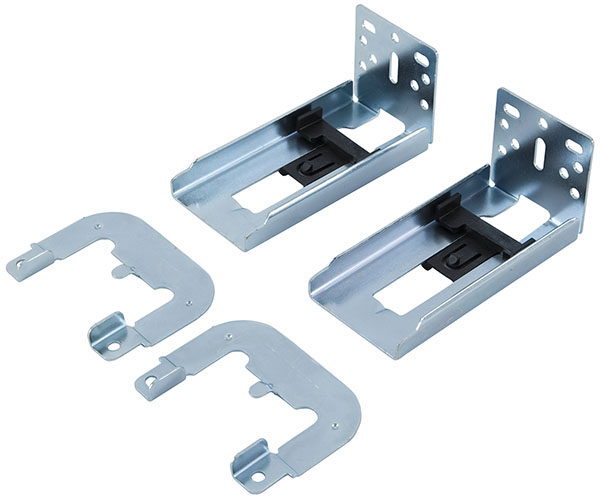

  Supplied with :

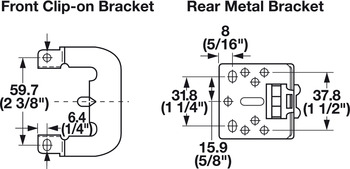

  2 Rear Metal Brackets

  2 Front Clip-on Brackets

  Installation Instructions





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.04.002, 422-04-002, 42204002, 422.04


  Specifications/Hafele Catalog - Page# FC8.43: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
