Hafele 421.59.500 End Stop, Accuride 115RC Linear Motion Track System, 265 Weight Capacity Accuride 115RC, Aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.59.500

  Product Title: End Stop, Accuride 115RC Linear Motion Track System, 265 Weight Capacity, Accuride 115RC, Aluminum

  Category: End Stop, Accuride 115RC Linear Motion Track System, 265 Weight Capacity, Accuride 115RC, Aluminum

  Item Details …

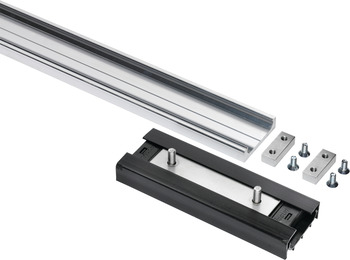

  - Linear Motion Track System is a unique movement solution consisting of lightweight aluminum tracks and re-circulating ball carriages which provide guidance, movement and positioning for screens, panels, partitions or other components in industrial, commercial and institutional applications.Weight capacity: Up to 265 pounds

  - • Track available in two lengths: 1.2 m (47") and 2.4 m (94")

  - • Corrosion-resistant track may be cut down to the desired length or butted together to extend to any length

  - • Re-circulating ball carriages in two options:- Stainless steel ball bearing carriage – provides the greatest load capacity- Polymer ball bearing carriage – grease-free with smooth and quite movement

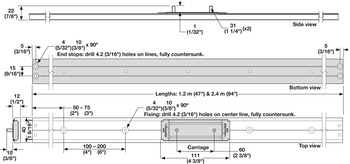

  - • Tracks have drilling marks for both the fixing holes and end stops

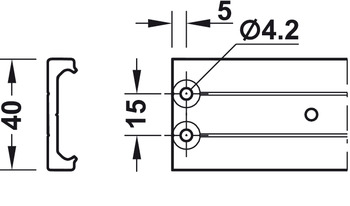

  - Product type : End Stop

  - Load bearing capacity : 265 lbs

  - Area of application : For sliding objects horizontally (cabinets, claddings, ...)

  - Suitable for : Accuride 0115RC linear runners

  - Material : Aluminum

  - Installation : For screw fixing

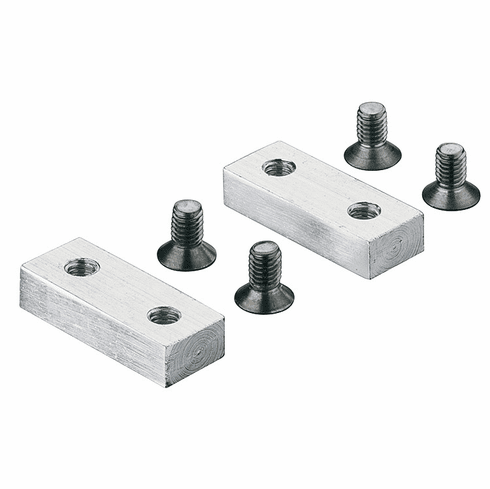

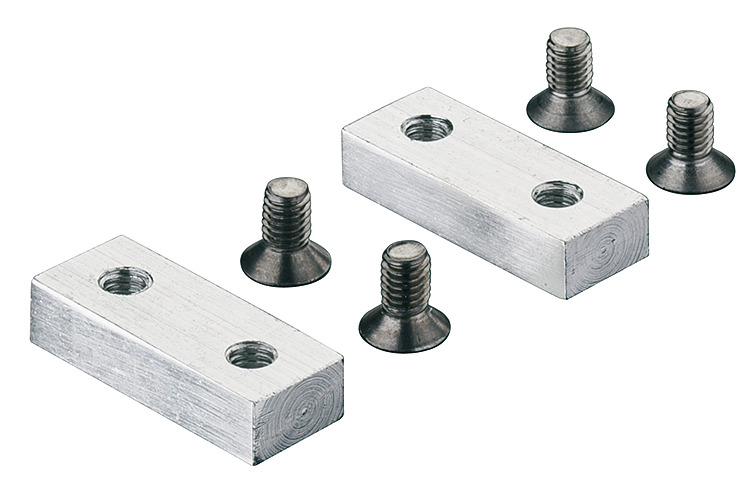

  - Supplied with:

  - 1 end stop

  - 2 countersunk head screws, M4


  Additional Information …

  Weight capacity is based on the type and number of ball carriages. See the Load Rating tab for more information. Due to the extensive variety of applications and possible orientations for this product, we recommend that customers first test this product in the intended application. This product is not recommended for high-torque applications.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  421.59_115RC_installation

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.79-8.80.pdf

  Hafele 421.59.500, 421-59-500, 42159500, 421.59


  Specifications/Hafele Catalog - Page# FC8.64: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
