Hafele 421.50.665 Pull-Out Guide, FR771, progressive, full extension, with EZ-close mechanism, top/bottom mounted, white, 650mm, 275 lbs

Product Information

• Description

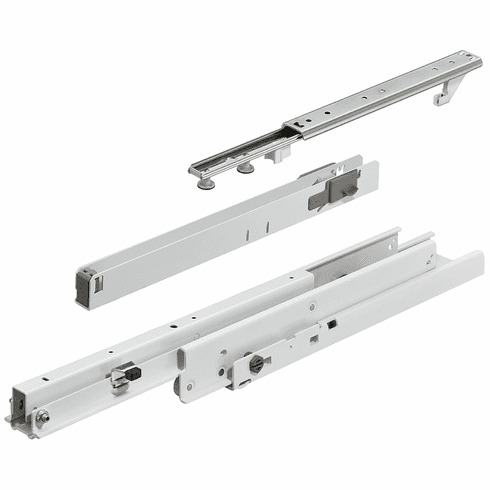

  Hafele 421.50.665 Pull-out cabinet runners, Full extension, load bearing capacity up to 120 kg, steel/plastic
  With integrated soft and self closing mechanism



  Installed length L : 650 mm

  Extension length AL : 634 mm

  Features : With guidance at top for absolute side stability
  extremely quiet, with integrated progressive drive

  Bearing : Top runners: Roller/ball bearing, bottom runners: Friction bearing mounted plastic rollers

  Material : Runners: Steel
  stops: Plastic

  Finish/color : Runners: Powder coated, white

  Size : Recommended cabinet height max. 2 m
  cabinet width max. 500 mm (with appropriately stable structure)

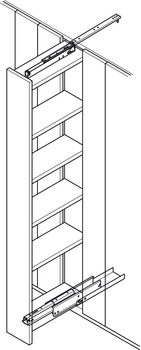

  Installation : Quick and easy with slide-on system



  Supplied with :

  1 ball bearing runner with rollers

  1 top runner with end stop for side stabilisation

  1 bottom runner

  1 set of installation instructions
