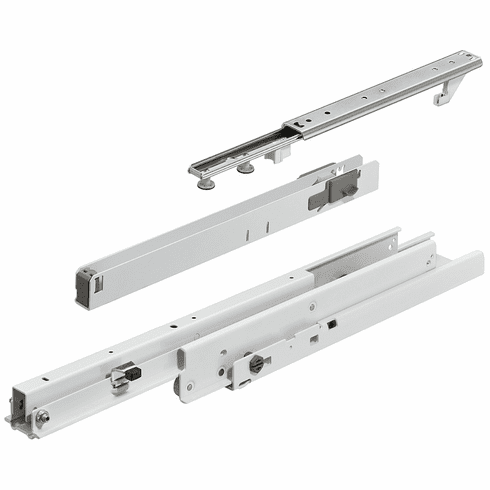

Hafele 421.50.650 Pull-out cabinet runners, Full extension, load bearing capacity up to 120 kg, steel/plastic With integrated soft and self closing mechanism

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.50.650

  Product Title: Pull-out cabinet runners, Full extension, load bearing capacity up to 120 kg, steel/plastic, With soft and self closing mechanism (optional), 19 11/16" installed length, 19 1/16" extension length

  Category: Pull-out cabinet runners, Full extension, load bearing capacity up to 120 kg, steel/plastic, With soft and self closing mechanism (optional)

  Item Details …

  - Load bearing capacity : 275 lbs

  - Width (inch) : Max. 19 3/4"

  - Height (inch) : 5 23/32"

  - Version : With guidance at top for absolute side stabilityextremely quiet, with integrated progressive drive

  - Material : Runners: Steelstops: Plastic

  - Color/finish : Runners: Powder coated, white

  - Installation : Quick and easy with slide-on system

  - Order reference

  - Please order soft and self closing mechanism for soft closing action separately.

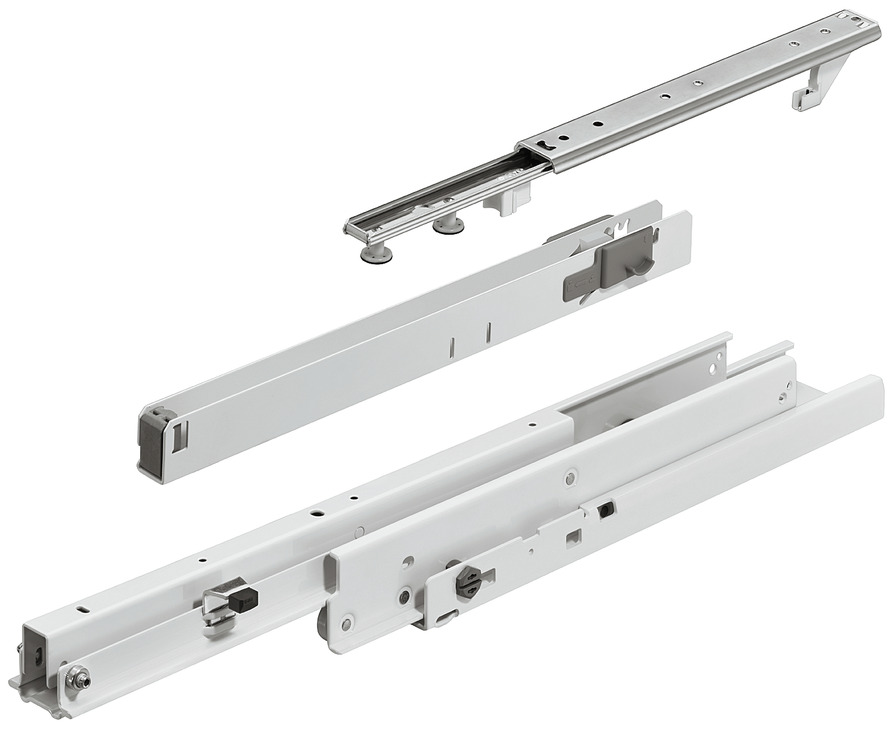

  - Supplied with:

  - 1 ball bearing runner with rollers

  - 1 top guide with end stop for side stabilisation set

  - 1 floor guide

  - 1 set of installation instructions


  Additional Information …

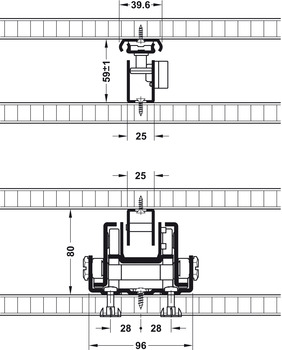

  Do not lubricate the tracks of this runnerSecure cabinet with securing brackets to prevent tippingInstallation width min. 110 mm with soft and self closing mechanism (without soft and self closing mechanism min. 108 mm)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.133
