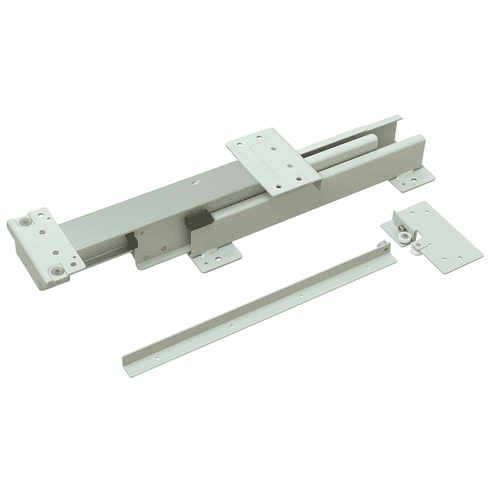

Hafele 421.48.531 EKU Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity 20 7/8" installed length, 19 1/4" extension length

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.48.531

  Product Title: Hawa Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity, 20 7/8" installed length, 19 1/4" extension length

  Category: Hawa Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity,

  Item Details …

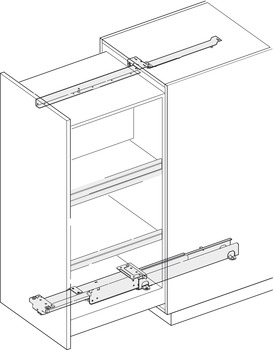

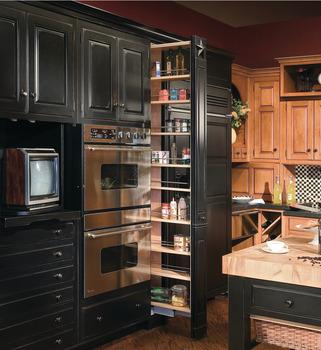

  - These heavy duty slides are specifically designed for pantry shelf applications and come in a variety of lengths to suit your needs

  - Eleven different lengths allow you to optimize your storage space and bring your goods into easy reach

  - Load bearing capacity of pull out shelf : 170.00 kg

  - Height : 40?–?87 mm

  - Color/finish : Gray RAL 7035

  - Version : 8 ball-bearing mounted plastic covered steel rollers2 friction bearing mounted steel rollers1 friction bearing mounted cylinder steel roller

  - Load bearing capacity : 374 lbs.

  - Type of pull out : Partial extention

  - Material : Steel

  - Adjustment facility : Height adjustment 3 mm (+2/-1) with adjusting screw permitting alignment of front panel

  - Features : 8 ball-bearing mounted plastic covered steel rollers2 friction bearing mounted steel rollers1 friction bearing mounted cylinder steel roller

  - Installation reference : Rubber buffers on the rails and runner ensure silent actionReturn guide and retainer provide for the accurate closure of the cabinet pull-out safety stop

  - Installation : Screw fixing

  - Number of baskets : 9.00

  - Order reference

  - Accessories such as soft closing set and add on panel to be ordered separately

  - 421.48.381 will not work 421.48.021 soft close

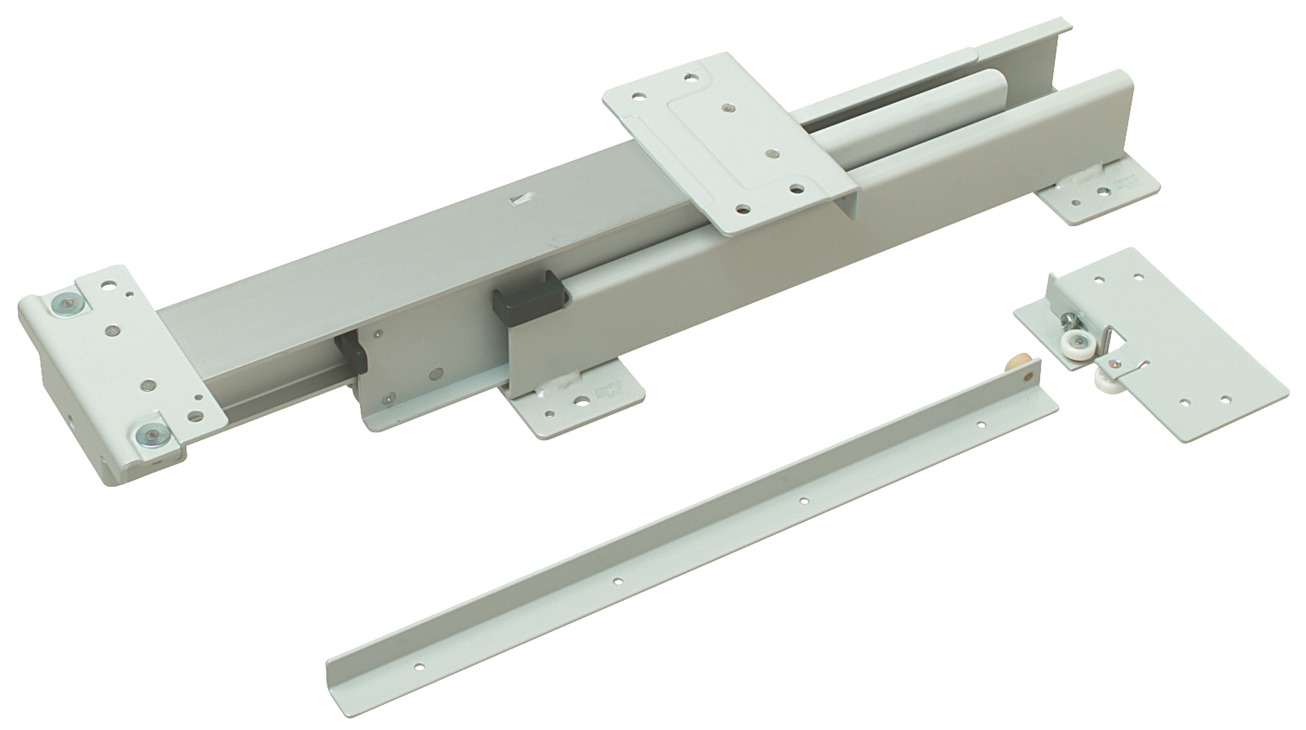

  - Supplied with:

  - Bottom runner

  - Top guide

  - Mounting instructions
