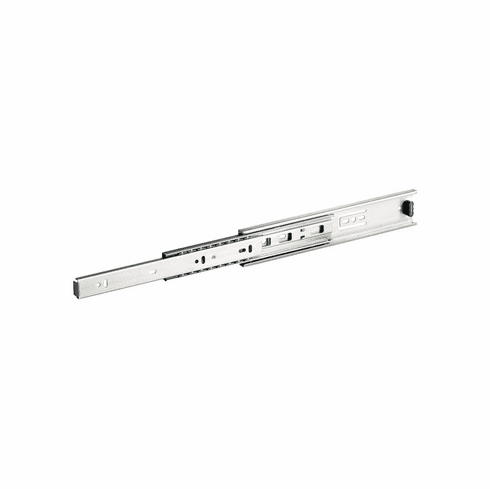

Hafele 420.43.065 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity 26" Length, 90 lbs

Product Information

• Description

  Hafele 420.43.065 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity
  26" Length, 90 lbs



  Load bearing capacity : (90 lbs.) 41 kg

  Installation : 1/2" side space required

  Features : Lever disconnect

  Type of pull out : Full extension with hold-in detent

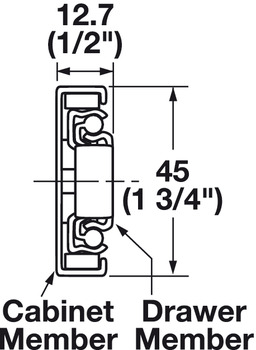

  Profile height : (1 3/4") 45 mm

  Material : Stainless steel

  Quality : 1.4301/AISI 304

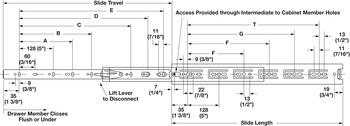

  A : (13/16") 224 mm

  C : (16 3/8") 416 mm

  D : (21 3/8") 544 mm

  E : (23 5/16") 592 mm

  G : (13 7/8") 352 mm

  T : 544 mm



  Optional items:
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.81-8.82.pdf

  Hafele 420.43.065, 420-43-065, 42043065, 420.43


  Specifications/Hafele Catalog - Page# FC8.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
