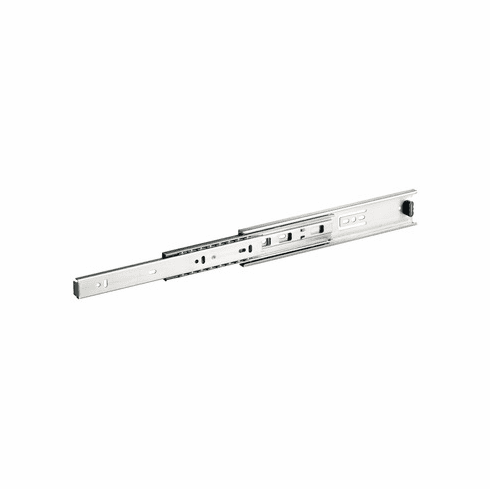

Hafele 420.43.050 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity 20" Length, 97 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 420.43.050

  Product Title: 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity, 20" Length, 97 lbs

  Category: 304 Stainless Steel Side Mounted Slide, Full Extension, 88 - 115 lbs Weight Capacity,

  Item Details …

  - Not rated for MRI

  - Version : Lever disconnect

  - Type of pull out : Full extension

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Stainless steel

  - Bearing : Ball bearing

  - Installation : 1/2" side space required

• Data Sheet

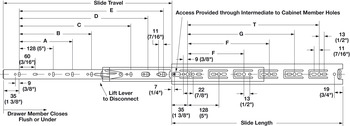

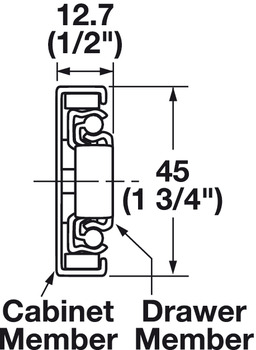

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.119



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.81-8.82.pdf

  Hafele 420.43.050, 420-43-050, 42043050, 420.43


  Specifications/Hafele Catalog - Page# FC8.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
