Hafele 408.36.361 Pocket Door System, Accuride 123 (35 mm hinges included) Length: 608 mm (24")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.36.361

  Product Title: Pocket Door System, Accuride 123 (35 mm hinges included), Length: 608 mm (24")

  Category: Pocket Door System, Accuride 123 (35 mm hinges included),

  Item Details …

  - Inset Frameless ApplicationInset application for doors up to 13/16” thick.

  - Overlay Face Frame ApplicationMaximum door thickness up to 13/16”. Doors over 3/4” will require hinge adjustment and overlay amount will decrease. The hinge base plate must be moved forward to the two front face frame holes as indicated in the drawing.

  - Cut follower strip is 6” shorter than door height

  - Maximum thickness for follower strip is 19 mm (3/4”)

  - Detent out

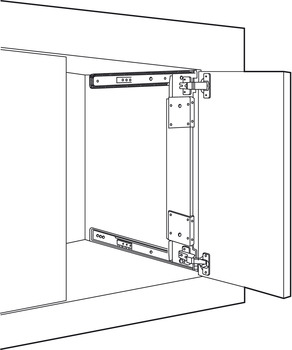

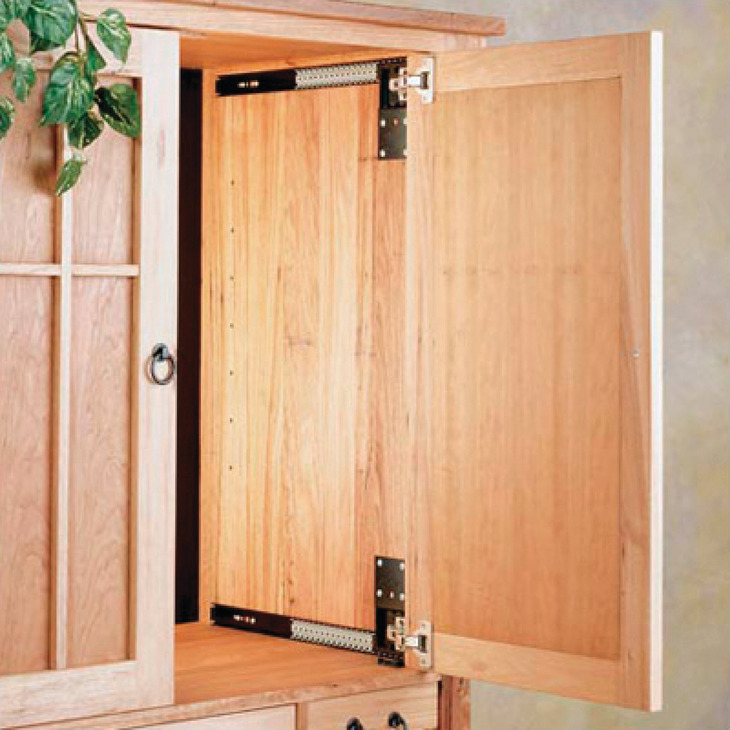

  - Area of application : For concealed doors in entertainment centers, wall units, and cabinets

  - For door material : wood

  - Set : Set with tracks

  - For door width : ?1,067 mm

  - Note on door width : Horizontal max. 42", vertical max. 24"

  - For door height : ?1,067 mm

  - Note on door height : Horizontal max. 24", vertical max. 42"

  - For door weight : ?13.6 kg

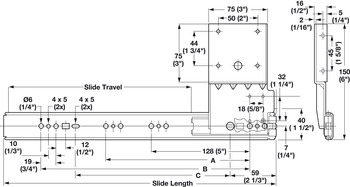

  - Dim. A : 352.00 mm

  - Load bearing capacity : 30 lbs.

  - Dim. A : 13 7/8"

  - For door thickness min. : 5/8"

  - For door thickness max. : 1 1/4"

  - For door thickness : 16?–?31.75 mm

  - Material/finish : Black, Zinc

  - Installation : Wood follower strip is provided by the customerCut follower strip is 6” shorter than door heightMaximum thickness for follower strip is 19 mm (3/4”)Detent out

  - Supplied with:

  - 2 slides

  - 2 pivot blocks and all mounting hardware

  - 2 clip on hinges
