Hafele 408.35.367 Pocket Door System, Accuride 1234 (Hinges not included) Length: 659 mm (26")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.35.367

  Product Title: Pocket Door System, Accuride 1234 (Hinges not included), Length: 659 mm (26")

  Category: Pocket Door System, Accuride 1234 (Hinges not included),

  Item Details …

  - Wood follower strip is provided by the customer

  - Cut follower strip is 6” shorter than door height

  - Maximum thickness for follower strip is 19 mm (3/4”)

  - Detent out

  - Cut follower strip is 6” shorter than door height

  - Maximum thickness for follower strip is 19 mm (3/4”)

  - Detent out

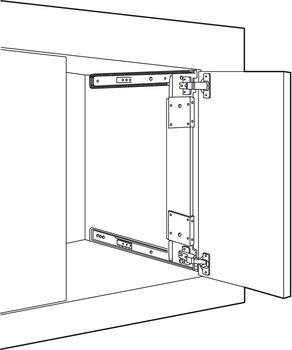

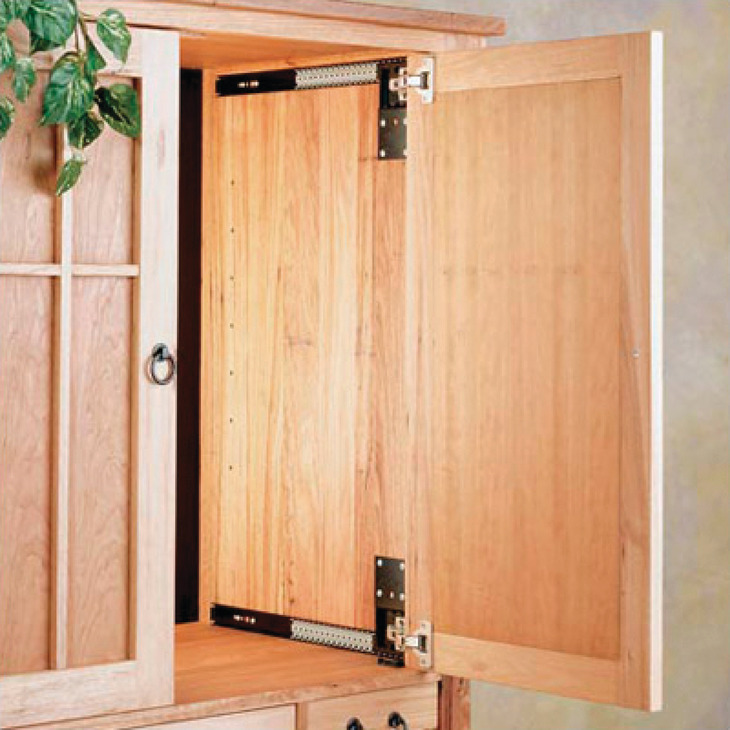

  - Area of application : For concealed doors in entertainment centers, wall units, and cabinets

  - For door material : wood

  - Set : Set with tracks

  - For door width : ?1,067 mm

  - Note on door width : Horizontal max. 42", vertical max. 24"

  - For door height : ?1,067 mm

  - Note on door height : Horizontal max. 24", vertical max. 42"

  - For door weight : ?13.6 kg

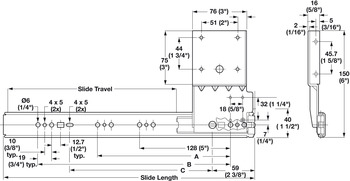

  - Dim. A : 352.00 mm

  - Load bearing capacity : 30 lbs.

  - Dim. A : 13 7/8"

  - For door thickness min. : 5/8"

  - For door thickness max. : 1 1/4"

  - For door thickness : 16?–?31.75 mm

  - Material/finish : Black, Zinc

  - Installation : Wood follower strip is provided by the customerCut follower strip is 6” shorter than door heightMaximum thickness for follower strip is 19 mm (3/4”)Detent out

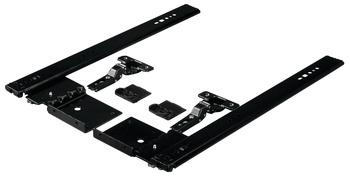

  - Supplied with:

  - 2 slides

  - 2 pivot blocks and all mounting hardware


  Additional Information …

  Please order door fixing sets (including concealed hinges, mounting plates, door stops and all fixing screws) separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Accuride 123 and 1234 Pocket Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.116



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.100-7.101.pdf

  Hafele 408.35.367, 408-35-367, 40835367, 408.35


  Specifications/Hafele Catalog - Page# FC7.156: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Pocket Door Component, Accuride 1234 Hinge Kit (choose one):


  • for inset frameless or overlay face frame door, Accuride 4180-0391-XE; 35 mm for inset frameless door, Accuride 4180-0313-XE; 40 mm for overlay frameless door, Accuride 4180-0314-XE; 40 mm

    408.24.030 408.24.031 408.24.032

    Click to order Click to order Click to order
