Hafele 408.35.002 ACCURIDE 1532-SI POCKET DOOR 70" - 118"

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.35.002

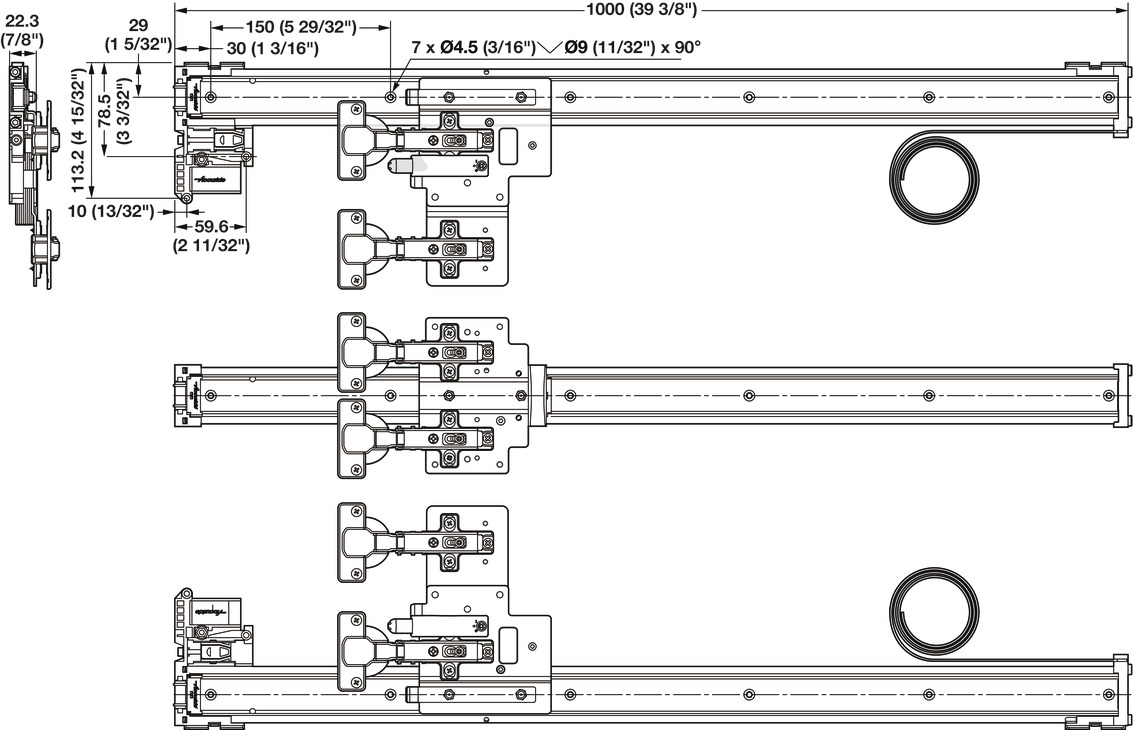

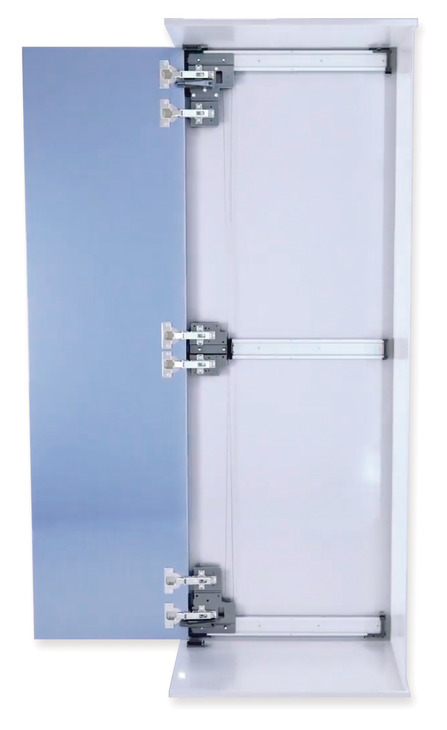

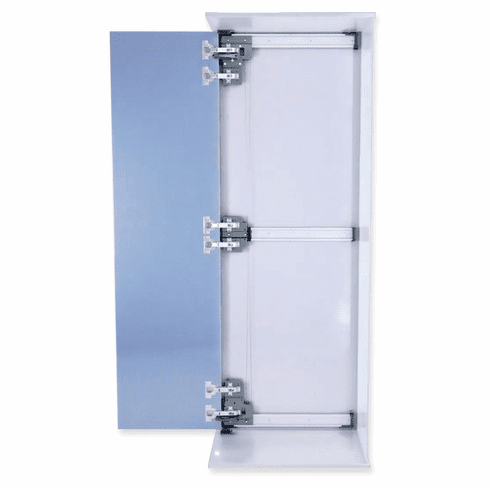

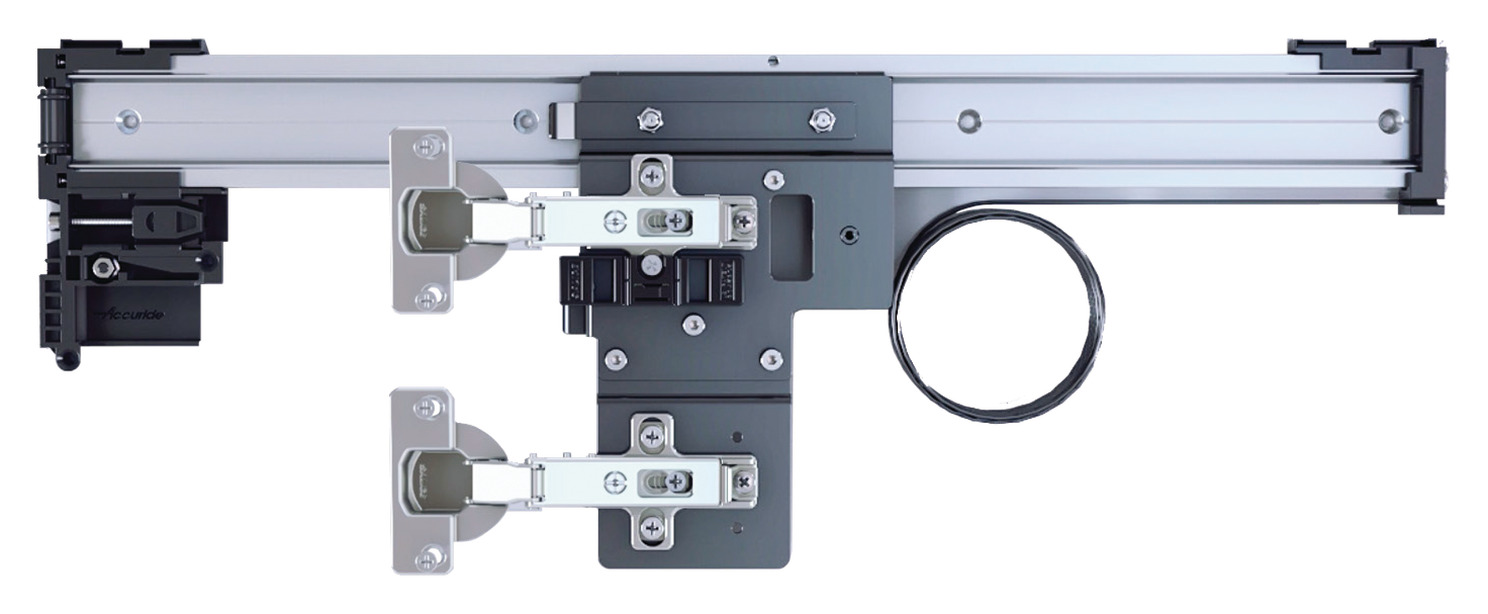

  Product Title: Pocket Door System, Accuride 1532, 6 hinges, 3 slides, SI fit

  Category: Pocket Door System, Accuride 1532,

  Item Details …

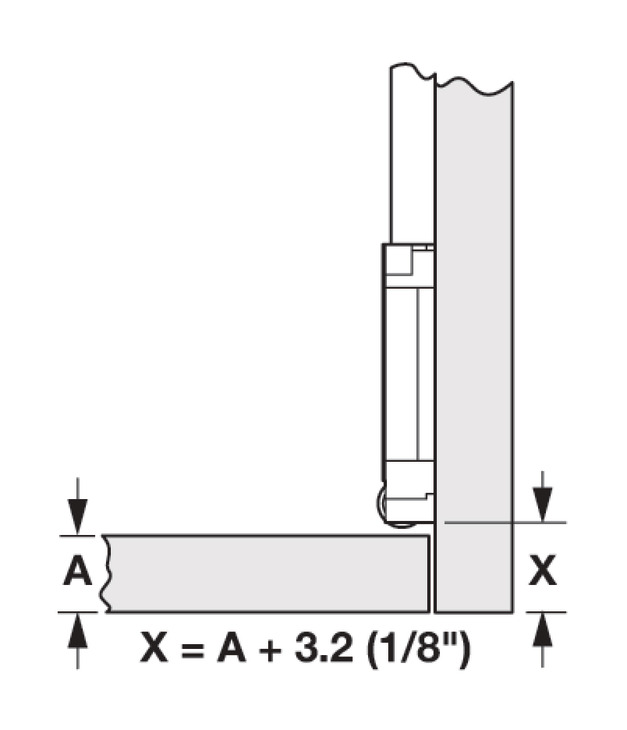

  - PO = Partial Overlay (<19 mm (3/4")

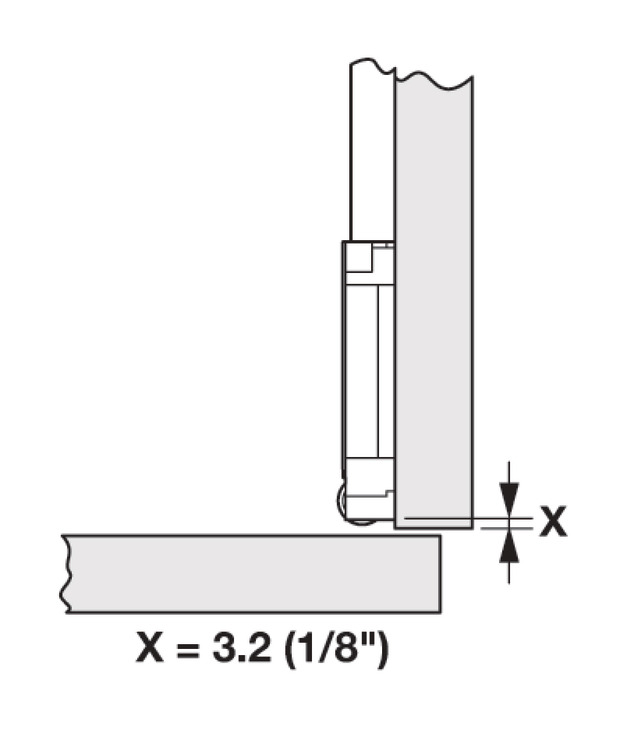

  - SI = Slim Inset (19-20.6 mm (3/4 - 13/16")

  - TI = Thick Inset (20.6-31.8 mm (13/16 - 1 1/4")

  - Soft close hinges

  - Rail can be cut to size

  - Cable system for synchronized slide operation

  - Door retracts 132 mm (5 3/16") less than slide length

  - For inset and partial overlay

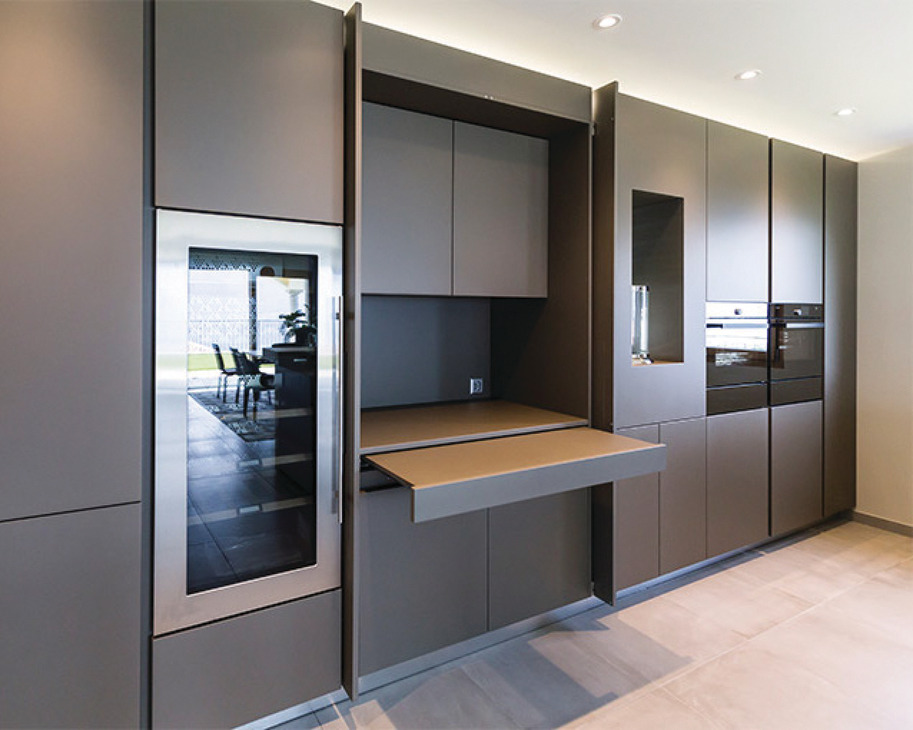

  - Area of application : Hospitality, micro-living, recreational vehicle, kitchen, etc

  - For door width : ?991 mm

  - Note on door height : Max. 118 1/8"

  - For door weight : ?45 kg

  - Note on door weight : Max. 100 lbs

  - Door width max. : Max. 39"

  - For door thickness : ?32 mm
