Hafele 408.34.371 Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket Length: 710 mm (28")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.34.371

  Product Title: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm, Length: 710 mm (28")

  Category: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm

  Item Details …

  - Minimum door stile width of 64 mm (2 1/2”) is required

  - Horizontal doors maximum 42” width by 24” height

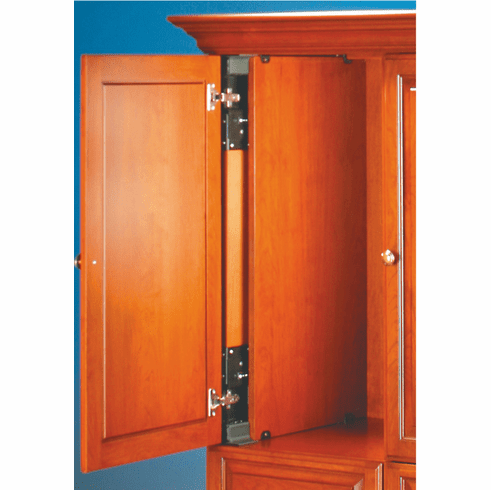

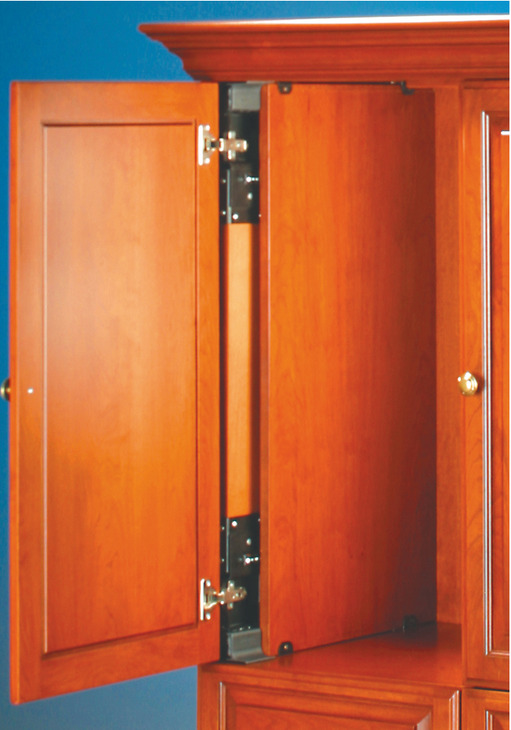

  - Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or raised panels

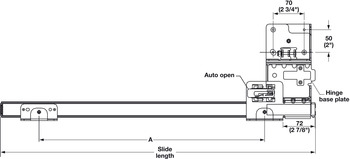

  - Auto open feature pushes cabinet doors open the final 32 mm (1 1/4”)

  - Hardwood is recommended for the follower (customer supplied)

  - Follower length is the interior opening height minus 279 mm (11”)

  - Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing

  - Area of application : For TV and Hi-Fi cabinets and wall units

  - For door material : wood

  - Set : Set with tracks

  - Number of doors : 1.00

  - For door width : ?610 mm

  - For door height : ?1,065 mm

  - For door weight : ?14 kg

  - Load bearing capacity : 30 lbs.

  - Overlay distance : max.: 3/4”

  - For door thickness : 19?–?38 mm

  - Material/finish : Steel, Black, Zinc

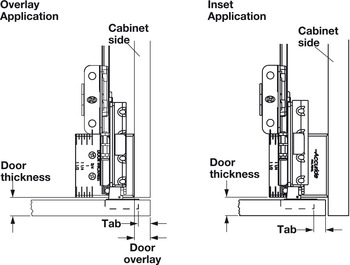

  - Installation : For vertical installation, full overlay mounting, full overlay with cabinet side panel thickness 19 mm

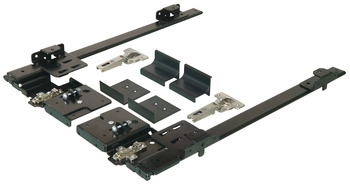

  - Supplied with:

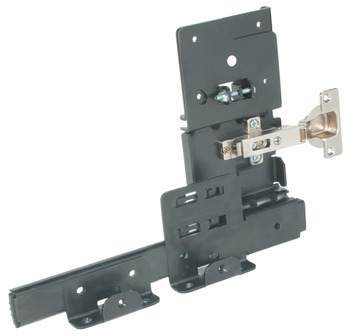

  - 2 slides with attached base plate

  - 2 hinges and plates

  - Skid blocks

  - Cover

  - Mounting screws

  - Installation instructions
