Hafele 408.34.361 Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket Length: 608 mm (24")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.34.361

  Product Title: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm, Length: 608 mm (24")

  Category: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm

  Item Details …

  - Minimum door stile width of 64 mm (2 1/2”) is required

  - Horizontal doors maximum 42” width by 24” height

  - Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or raised panels

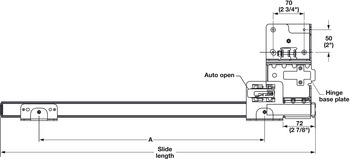

  - Auto open feature pushes cabinet doors open the final 32 mm (1 1/4”)

  - Hardwood is recommended for the follower (customer supplied)

  - Follower length is the interior opening height minus 279 mm (11”)

  - Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing

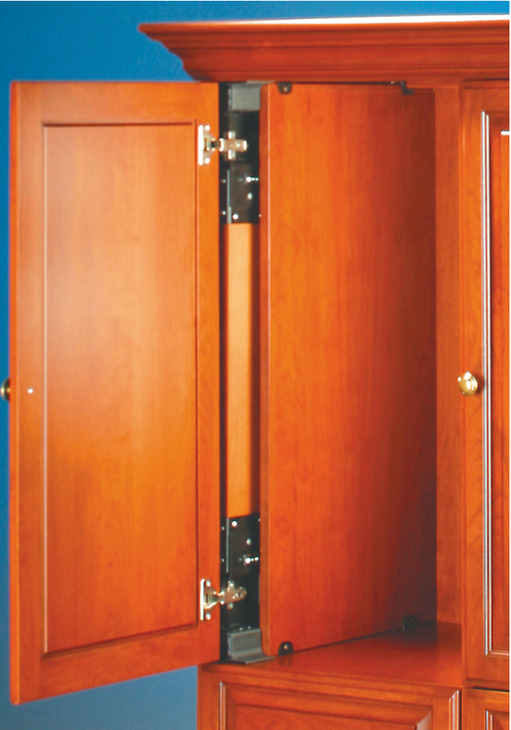

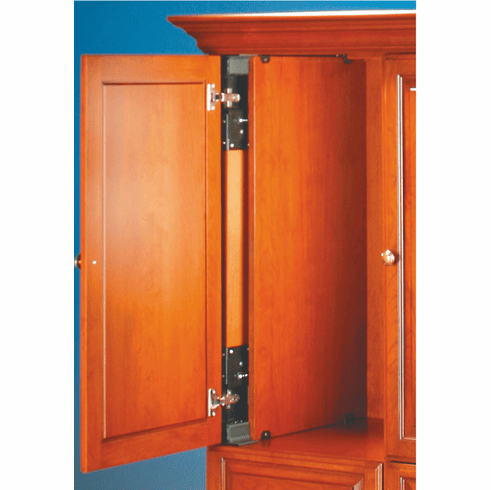

  - Area of application : For TV and Hi-Fi cabinets and wall units

  - For door material : wood

  - Set : Set with tracks

  - Number of doors : 1.00

  - For door width : ?610 mm

  - For door height : ?1,065 mm

  - For door weight : ?14 kg

  - Load bearing capacity : 30 lbs.

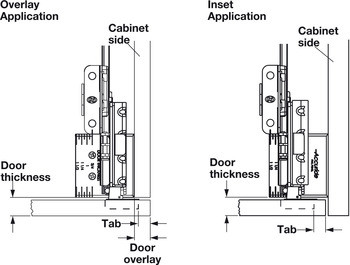

  - Overlay distance : max.: 3/4”

  - For door thickness : 19?–?38 mm

  - Material/finish : Steel, Black, Zinc

  - Installation : For vertical installation, full overlay mounting, full overlay with cabinet side panel thickness 19 mm

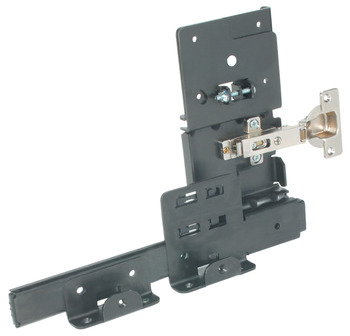

  - Supplied with:

  - 2 slides with attached base plate

  - 2 hinges and plates

  - Skid blocks

  - Cover

  - Mounting screws

  - Installation instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for 1321

  Accuride 1321 Pro Pocket Mounting Instructions

  Accuride 1321 Pro Pocket Installation Video

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.119



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.102-7.102.pdf

  Hafele 408.34.361, 408-34-361, 40834361, 408.34


  Specifications/Hafele Catalog - Page# FC7.159: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
