Hafele 408.31.016 HAWA-Folding Concepta 25, 3-door, left-hand, length: 2120 mm, height: 1851-2600 mm, aluminum anodized

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.31.016

  Product Title: Wooden Folding Sliding Doors, HAWA Folding Concepta 25, set, hinges with soft closing mechanism, Door height 1851–2600 mm, left hand mounting, colorless anodized

  Category: Wooden Folding Sliding Doors, HAWA Folding Concepta 25, set, hinges with soft closing mechanism,

  Item Details …

  - Suitable for 3 doors in combination with Hawa Concepta

  - Number of doors : 2.00

  - For door width : 300?–?700 mm

  - For door weight : ?25 kg

  - Version : Hinges with soft closing mechanism

  - For door thickness min. : 3/4"

  - For door thickness max. : 1"

  - Length (inch) : 2' 1 19/32"

  - For door thickness : 19?–?26 mm

  - Material/finish : AluminiumSteelPlastic, Colorless, anodized

  - Running gear guided by : Ball bearing

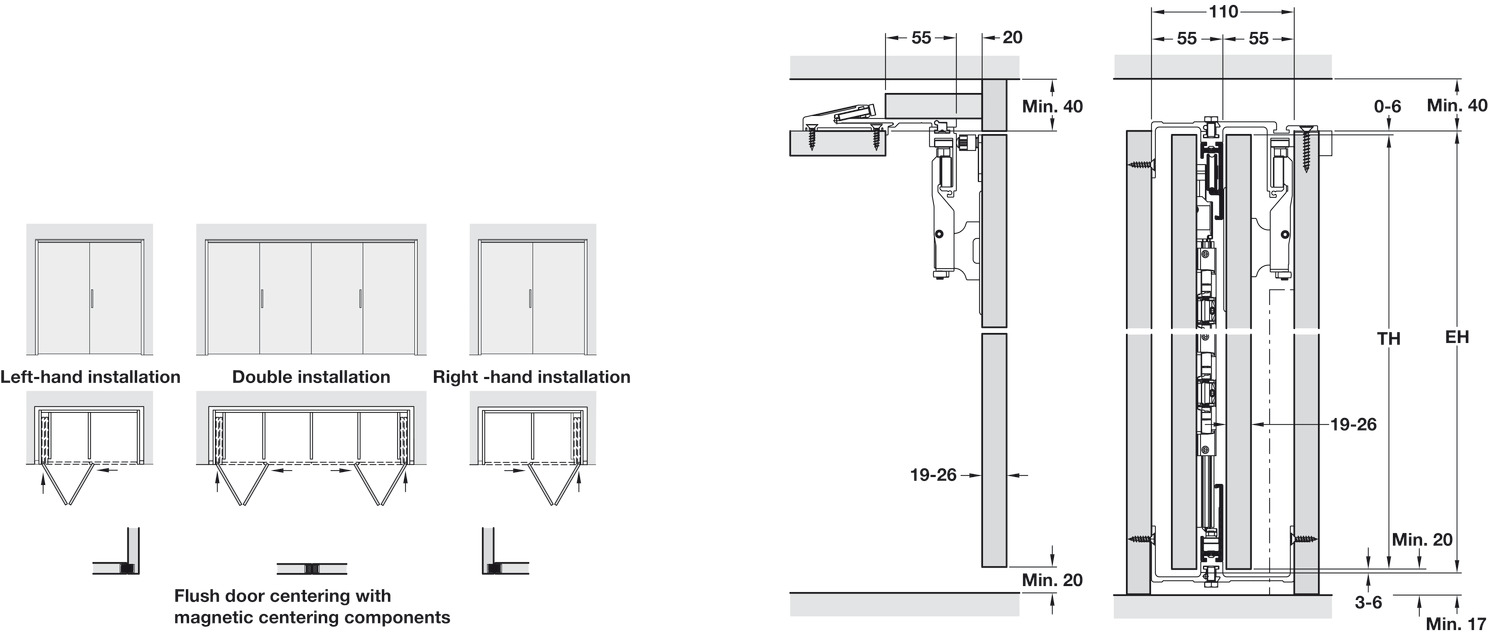

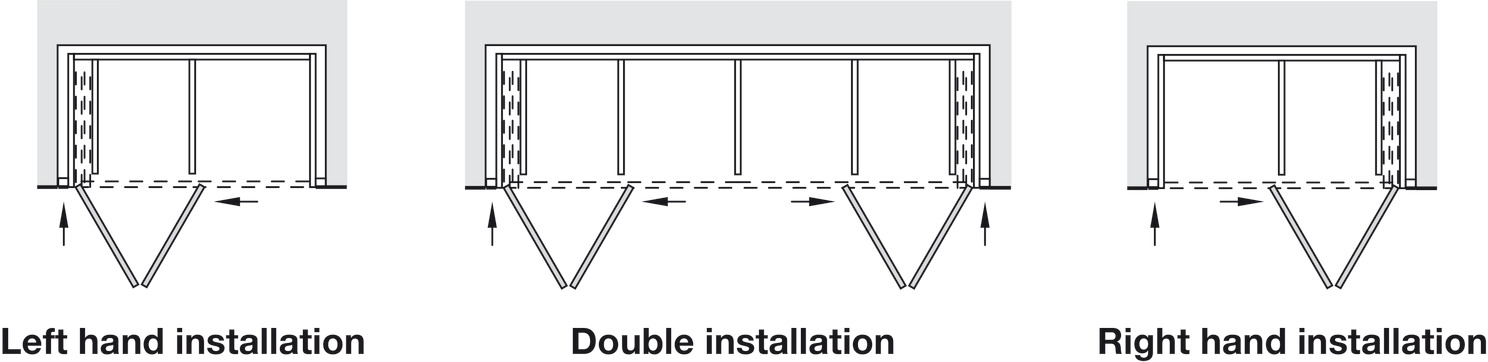

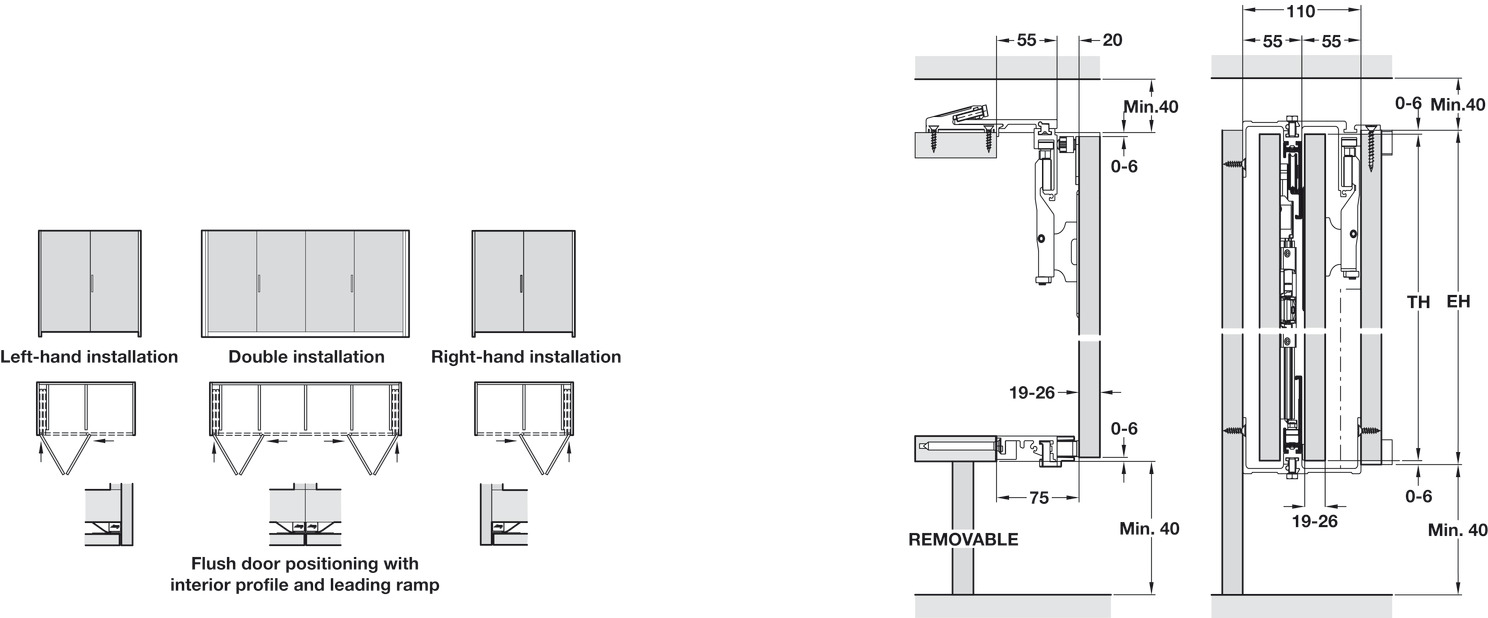

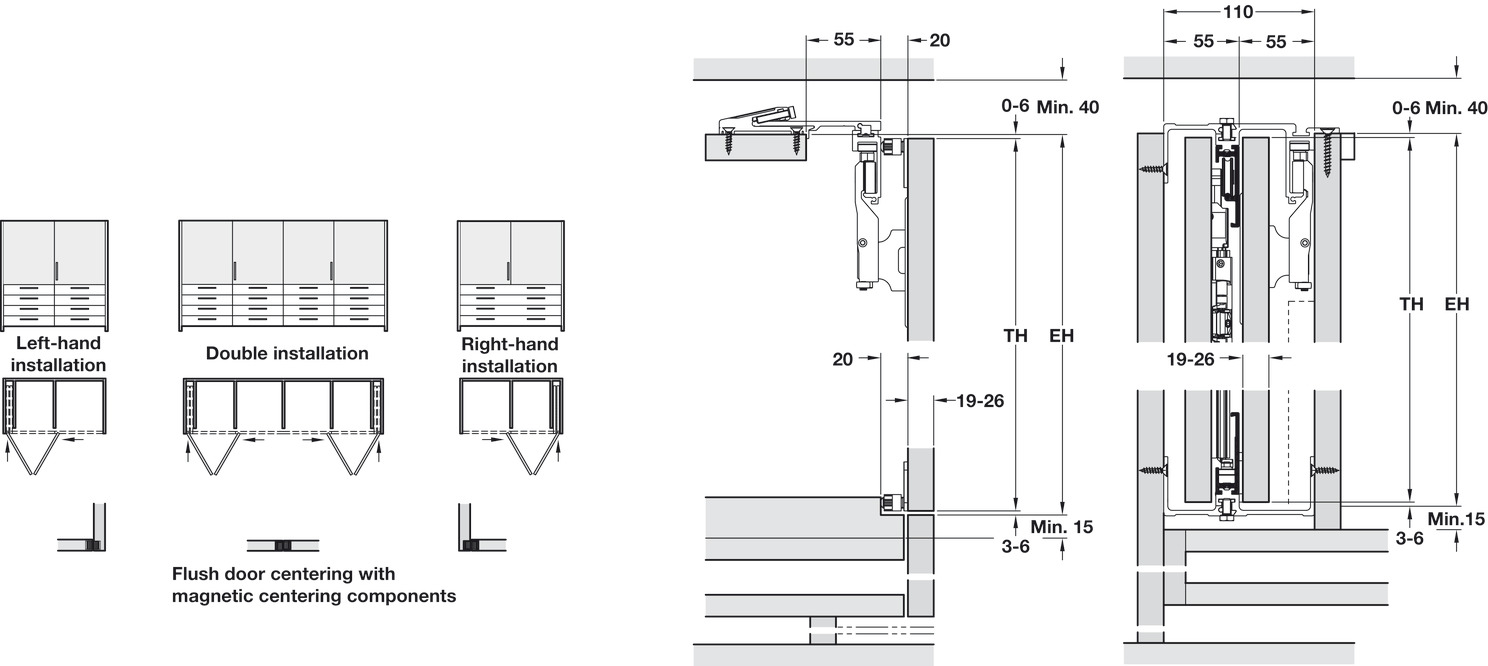

  - Installation : Left hand

  - Order reference

  - Strengthening profile cut to required length available on request. Please order connecting plate separately.

  - Supplied with:

  - 1 set

  - 2 Connector connecting profiles for parking pocket (1 top, 1 bottom)


  Additional Information …

  We recommend using the strengthening profile for double systems up to max. 2800 mm without centre panel.2 floor profiles are required for Vorfront construction with 4 doors.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.132



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Bottom Profile with Cover Caps, Contact Slope and Drilling Jig, for Concepta 25
  • Magnetic Centering Part with Drilling Jig, for Concepta 25
  • Strengthening profile for cabinet top panel, for Concepta 25
  • Connecting plate, For running track
